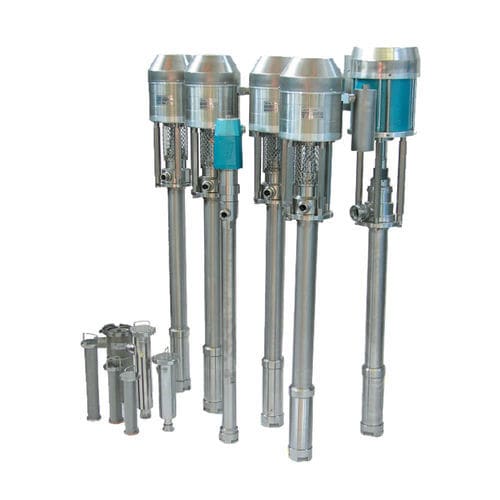

Pneumatic pump 412/482 IC-D

centrifugalfor liquidsself-priming

Direct start (High and medium viscosity)
Pump model | Ratio | Max. pressure [bar] | Flow rate [L/min]
412/482 IC‑D | 2:1 | 12 | 27
621/495 IC‑D | 4:1 | 24 | 8.4
621/498 IC‑D | 4:1 | 24 | 8.4
2012/S081-1 | 4:1 | 24 | 38
2008/S080-2 | 5:1 | 30 | 46
2201/S124-2 | 5:1 | 30 | 110
319/495 IC‑D | 8:1 | 24 | 9.6
2010/S080-2 | 8:1 | 48 | 46
2201/S100-2 | 8:1 | 48 | 71
2201/S100-G11 | 8:1 | 48 | 71

Transfer
Pump model | Ratio | Max. pressure [bar] | Flow rate [L/min]
2018/913 IC‑D | 3:1 | 18 | 45
621/734 IC‑D | 4:1 | 24 | 8.4
2014/933 IC‑D | 4:1 | 24 | 27
415/933 IC‑D | 4:1 | 24 | 27
2008/913 IC‑D | 5:1 | 30 | 45
2012/933 IC‑D | 6:1 | 36 | 27
621/259 IC‑D | 8:1 | 48 | 4.9
319/734 IC‑D | 8:1 | 48 | 9.6
2018/789 IC‑DS | 8:1 | 48 | 16
2010/913 IC‑D | 8:1 | 48 | 45
2010/918 IC‑D | 8:1 | 48 | 45
2008/920 D R S | 8:1 | 48 | 45
2016/933 IC‑D | 10:1 | 60 | 27
2006/789 IC‑DS | 12:1 | 72 | 16
319/259 IC‑D | 14:1 | 84 | 5.4
2010/789 IC‑DS | 20:1 | 120 | 16
HXD‑6918QS‑SS | 30:1 | 186 | 3
962/789 IC‑DS | 32:1 | 192 | 7.5
2201/789 IC‑DS | 32:1 | 192 | 16
HXD‑2560‑SS | 66:1 | 409.2 | 6

Related products
Filter selection G1 – G1 – 1/2
Pneumatic lifters 21072 | Stroke 1100 mm – trigger height +/- 250 mm

General information
Airmation pneumatic motors use compressed air only to convert it into mechanical work, achieving notable performance and efficiency levels. Balanced modular double‑acting operation, longitudinal distributor with fully pneumatic control device, miniature pilot and control system: these features ensure reliability under varying load conditions and accuracy of developed pressure ratios.

Pneumatic motor‑driven pumps
Pneumatic motor‑driven pumps are offered with ratios from 1:1 up to 100:1 and flow rates from 0.2 up to 80 L/min. Construction materials include stainless steel AISI 304, 316, 321, series 400, and Hastelloy. The new generation incorporates aerospace‑grade materials for increased wear resistance, self‑compensating calibrated seals and coaxial guide ends for optimal sealing, providing reliable performance with simplified maintenance.

Selection factors
For correct equipment selection consider: flow rate, pressure ratios, viscosity and physico‑chemical characteristics of the product, and the specific application type.

Features / technical specifications

• Presented types: Direct start (high and medium viscosity), Transfer.
• Ratio range: from 1:1 up to 100:1 (examples on page: 2:1, 3:1, 4:1, 5:1, 6:1, 8:1, 10:1, 12:1, 14:1, 20:1, 30:1, 32:1, 66:1).
• Maximum pressures shown in tables: from 12 bar up to 409.2 bar depending on model.
• Example flow rates: from 3 L/min up to 186 L/min; typical values shown in tables (e.g. 27, 8.4, 38, 46, 110, 9.6, 71, 45, 4.9, 16, 3, 7.5, 6).
• Pneumatic motor bores: DN 3/4" (20 mm) ÷ DN 12" (300 mm).
• Construction materials: stainless steel AISI 304, 316, 321, series 400; Hastelloy available.
• Applications: transfer of fluid and viscous products, metering and integration with dedicated Airmation components.
• Design: longitudinal distribution, pneumatic control, integrated components to optimize performance and productivity.
