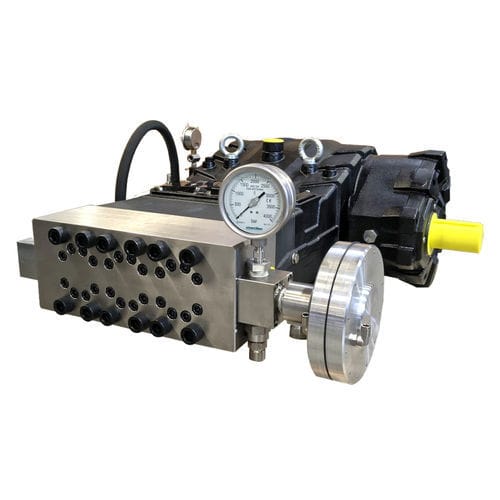

Water pump ATMH

stationaryhigh-pressurewith data logger

Description
High-pressure industrial water piston pump designed for demanding applications requiring continuous operation, precise pressure delivery and long service life. Optimized for fixed installations in industrial cleaning, material removal and testing operations.

ATMH series

• Pressure: 2500 bar
• Flow: 25.4 l/min (max)

Details
The mechanical construction ensures high structural strength and operational continuity. Power transmission is optimized with an input speed of 1000 rpm and a secondary shaft speed of approximately 460 rpm to reduce wear and provide uniform pressure output. The unit integrates an autonomous pump for forced lubrication and an oil radiator cooled by water to remove excess heat from the crankcase oil.
Configurations are available with pressure and temperature sensors (oil/water) and with monitoring/diagnostic software to enhance operational safety and equipment reliability.

ESSENTIAL TECHNICAL ELEMENTS
Technology: 3 pistons
Fluid: water
Mobility: fixed
Applications: high-pressure cleaning, material removal, industrial processes, testing
Flow max.: 25.4 l/min
Flow min.: 10 l/min
Pressure: 2500 bar
Power: 122 kW
Length: 966.4 mm
Width: 415 mm
Height: 377 mm

Features / Technical specifications

• Technology: 3 pistons
• Fluid: water
• Mobility: fixed
• Nominal pressure: 2500 bar
• Nominal flow: 25.4 l/min (max) / 10 l/min (min)
• Power: 122 kW
• Input speed: 1000 rpm; secondary shaft: approx. 460 rpm
• Lubrication: autonomous pump for forced lubrication
• Cooling: oil radiator with water cooling
• Options: pressure and temperature sensors (oil/water), monitoring and diagnostic software
• Dimensions (L x W x H): 966.4 mm x 415 mm x 377 mm
• Typical applications: high-pressure cleaning, technical material removal, industrial applications and testing
