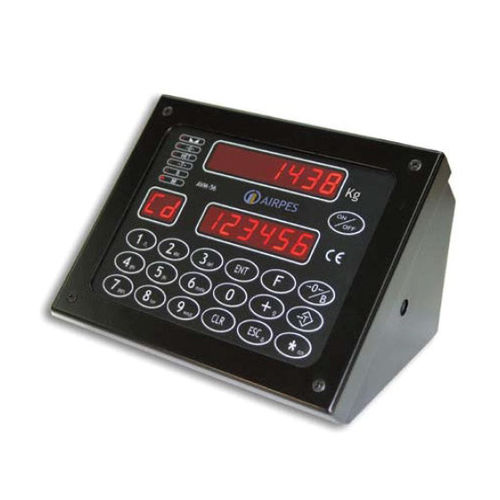

LED display weight indicator AVM-56

benchtopRS-485

The AVM-56 model of load indicator has been designed to control any scale, platform, loading cell, or groups of loading cells. Airpes’ Load Indicator AVM-65 Features The Load Indicator AVM-65 has a numeric keyboard of 18 keys and 3 LED visors of 0.56” with 6, 2, and 6 digits respectively. With it, you can comfortably control your scale, platform or loading cell and consult its key data. Optionally it can incorporate output for repeater of weight, RS-232-C, RS-485/422, output for the printer, transmission/reception by radio, limits of a power cut, various inputs and outputs, conversion of alignment of scales, etc. Benefits of the Load Indicator AVM-65 • 1 entry of scale or loading cell • Memorization of codes • Conversor of alignment of scales • Option inputs/outputs (limiter, doser, etc.) • Option RS-232-C • Option RS-485/422 • Option control maximum Peak • Option piece counter • Option support for fixation on wall or ceiling Feeding 110V or 220V AC (optionally fed with internal battery) Temperature -10ºC +50ºC Humidity 15% – 85%
