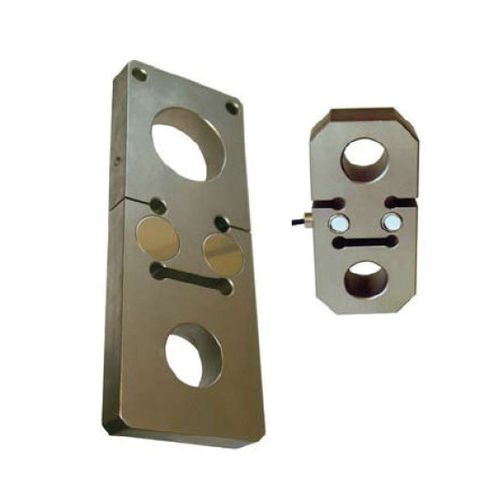

Tension load cell CTplanar beamcapacitivesteel
Add to favorites
Compare this product
Characteristics
- Type
- tension
- Form
- planar beam
- Technology
- capacitive
- Other characteristics
- steel, IP66, corrosion-resistant
- Rated load
Min.: 750 kg
(1,653.47 lb)Max.: 50,000 kg
(55.12 lb)
Description
The CT model of this traction load cells have been specially designed to work with traction with element detecting shear or double shear.
Features of the Airpes’ traction load cells
This weighing system is designed and manufactured in alloy steel and chemically treated anti-corrosive nickel.
• 3,000 OIML-R60 divisions
• Leak-tightness IP-66
• Capacities from 750Kg to 50T
• Available in stainless steel
• Class of precision
C3
• Sensitiveness
2 ±0,1%mV/V
• Vmin
Emax/10000
• Voltage of feeding
5÷15V
• Resistance at input
390Ω ó para DC 760Ω
• Resistance at output
350Ω ó para DC 700Ω
• The compensated margin of temperature
-10ºC to +40ºC
• The resistance of insulation:
>5000M
