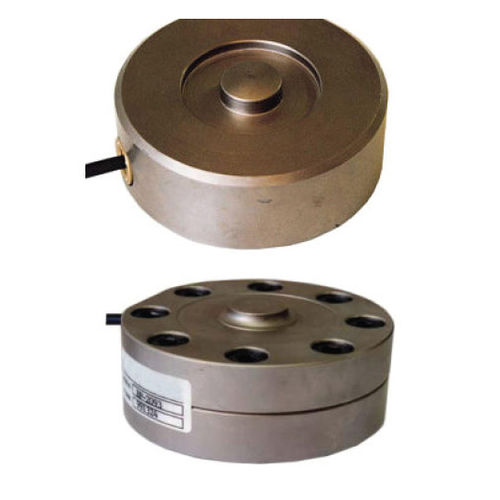

The compression load cells BP are specially designed to work with compression with element detecting a shear or double shear.
Airpes’ Compression load cells BP Features
Construction in alloy steel and chemically treated anti-corrosive nickel.
3,000 OIML-R60 divisions
Leak-tightness IP-66
Capacities from 750Kg to 50T
Available in stainless steel.
• Class of precision
C3
• Sensitiveness
2 ±0,1%mV/V
• Vmin
Emax/10000
• Voltage of feeding
5÷15V
• Resistance at input
390 ± ó para DC 760Ω
• Resistance at output
350 ± ó para DC 700Ω
• The compensated margin of temperature
-10ºC to +40ºC
• The resistance of insulation:
>5000M
