Compression load cell DCO seriesbeam typecapacitivesteel
Add to favorites
Compare this product
Characteristics
- Type
- compression
- Form
- beam type
- Technology
- capacitive
- Other characteristics
- steel, IP67
- Rated load
Min.: 3 t
(3.31 us ton)Max.: 50 t
(55.12 us ton)
Description

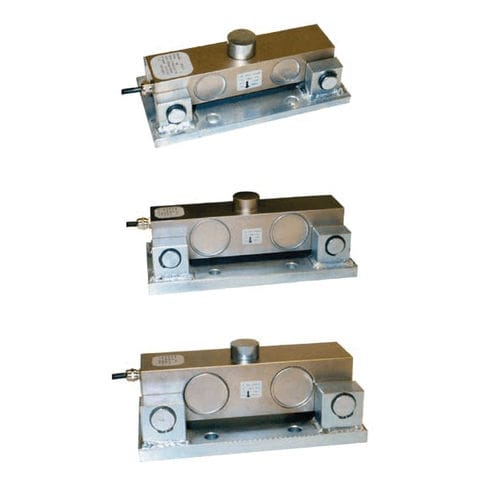

The DCO-2, DCO-3 and DCO-4 models of load cells have been specially designed to work with compression in double shear.
Features of DC Compression load cells DCO-2, DCO-3, DCO-4
Construction in alloy steel and chemically treated anticorrosive nickel.
• 3,000 OIML-R60 divisions Leak-tightness IP-67
• Capacities from 3T to 50T
• These load cells are available in stainless steel
BENEFITS
• Class of precision: C3
• Sensitiveness: 2±0,1%mV/V
• Vmin: Emax/10000
• Voltage of feeding: 5÷15V
• Resistance at input: 700±3Ω
• Resistance at output: 700±3Ω
• Compensated margin of temperature: -10ºC a +40ºC
• Resistance of insulation: >5000M
