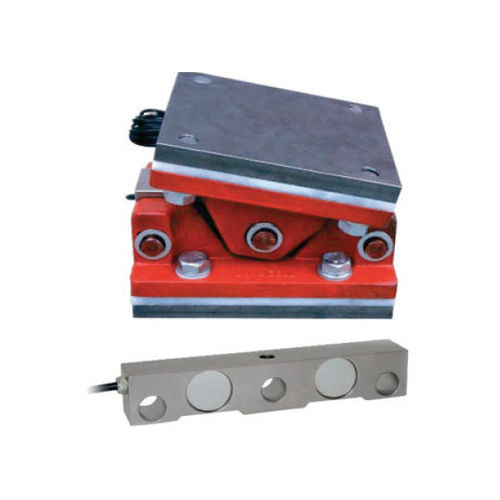

Compression load cell SKG

beam typecapacitive2 mV/V

Cells especially designed and manufactured for the control of the charge in silos. Features Load Cells Compression SKG • Capacities of 20, 25, 30, 40, and 50 Tons. • Includes an anti –capsizing support. • These double cutting cells are made of alloyed steel or stainless steel. • They hold low-profile support, treated with highly corrosion-resistant paint. Benefits Load Cells Compression SKG • Sensitiveness 2mV/V • Adjustment tolerance sensitiveness 0.1% • Adjustment zero tolerance <1% F.E. • Excitation tension ≤24V • No linearity <0.015% F.E. • No repeatability <0.012% F.E. • Combined error <0.029% F.E. • Hysteresis <0.012% F.E. • Fluency in 30 minutes <0.025% F.E. • Temp. effect and sensitiveness 300% F.E. • Cable (length of 8 meters) Flexible 6×0.25mm • Protection IP 65
