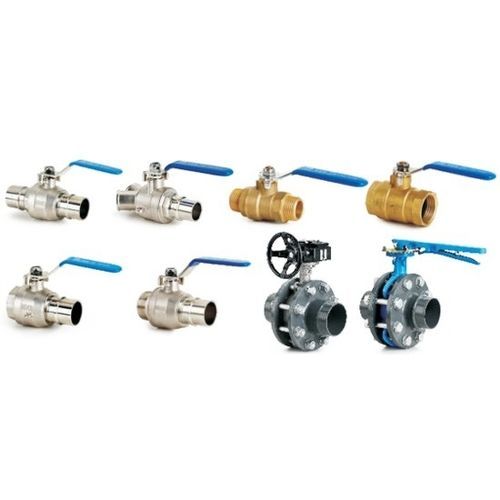

Ball valve levershut-offfor compressed air
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Function
- shut-off
- Media
- for compressed air, for nitrogen, helium
- Body
- threaded
- Number of channels
- 2-channel
- Other characteristics
- full-flow, corrosion-resistant, quick-connect, fire-resistant
- DN
20 mm, 25 mm, 40 mm, 50 mm
(0.787 in, 0.984 in, 1.575 in, 1.969 in)- Pressure
15 bar
(217.6 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
available with BSP thread, flange and quick-connect connector types,
Technical Specification
Available sizes
20 mm, 25 mm, 40 mm, 50 mm, 63 mm, 80 mm, 100 mm, 150 mm, 200 mm
Suitable fluids
vacuum,
Contact us for a complete list of suitable fluids.
Maximum working pressure
vacuum level: 1 mbar (absolute pressure).
*maximum working pressure for 200 mm is 13 bar
Lubricant compatibility
Compatible with all types of mineral and synthetic compressor oils.
Fire resistance
Fittings are all in aluminium, non-flammable and with no propagation of flame.
Materials
piping is made of 6063-T5 calibrated alloy aluminium and is powder coated outside,
fittings are made of robust cast aluminium, painted in grey, with durable Nitrile gasket seals,
pipe, fittings, and valves are available silicone-free.
