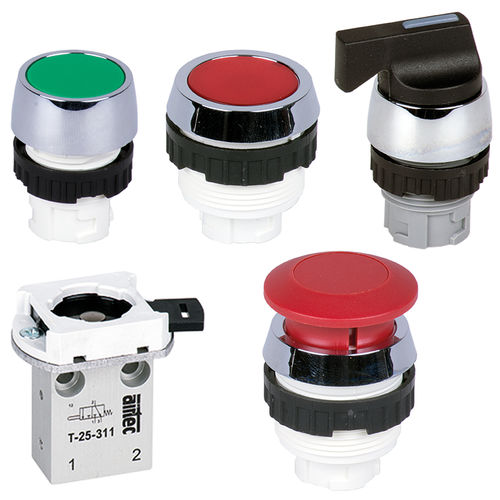

Mechanically-operated pneumatic directional control valve T seriesspoolpneumatic3/2-way
Add to favorites
Compare this product
Characteristics
- Type
- spool
- Actuating method
- pneumatic, mechanically-operated
- Ports/positions
- 3/2-way, 5/2-way
- Other characteristics
- spring-return
- Operating pressure
Max.: 12 bar
(174.05 psi)Min.: 0 bar
(0 psi)- Flow rate
80 l/min, 95 l/min, 100 l/min, 450 l/min, 465 l/min
(21.1 us gal/min, 25.1 us gal/min, 26.4 us gal/min, 118.9 us gal/min, 122.8 us gal/min)
Description
T-25
Connection: M5
Nominal size: 2,5 mm
Temperature range: -10°C...+70°C
Actuators:
Ø 22,5 mm or Ø 30 mm
T-28
Connection: G1/8
Nominal size: 4 mm
Temperature range: -10°C...+70°C
Actuators:
Ø 22,5 mm or Ø 30 mm
T-30
Connection: M5
Nominal size: 2 mm, 2,4 mm
Temperature range: -10°C...+70°C
ATEX: optional
Actuators:
Ø 22,5 mm oder Ø 30 mm
