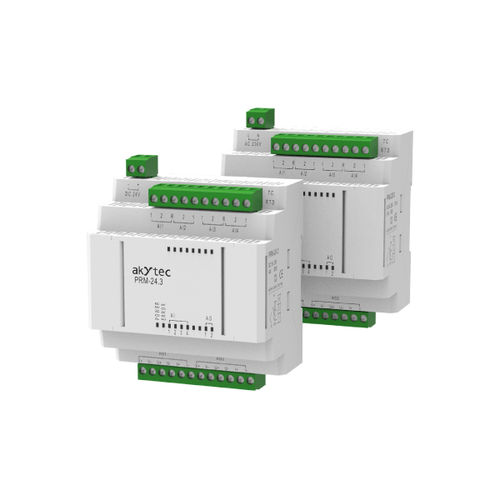

I/O expansion module PRM series

relaybusDIN rail

The I/O Modules of the PRM series offer the easiest-to-implement solution to expand the number of inputs and outputs of the PR102, PR103, PR200, PR205 Programmable Relays from akYtec. Once a PRM module has been connected to a PR treats the PRM's inputs and outputs as its own, and the same high-speed performance as of the base unit is kept. With one PRM unit, you can add 8 digital inputs and 8 relay outputs / 4 analog inputs and 4 relay outputs / 4 analog inputs and 2 analog outputs to the PR. The inputs and outputs are configurable, which means that you can set each of them for different signals and sensors choosing from 4-20 mA, 0-1V, various thermocouples and RTDs, switch contact, PNP, and many others. The PRM module is extremely quick and easy to install. It just has to be snapped onto a DIN rail and connected to the main device PR200 over an internal bus (a flexible bus cable is included in the scope of supply). The internal bus provides faster communication than a combination of RS485 and Modbus. As to supply voltage, the PRM extension module can be delivered in a version either for 24 VDC or for 230 VAC. Functions and features: - Possibility to expand PR200, PR102, PR103 with additional inputs and outputs without network protocols - Configurable inputs and outputs with various signals to choose from - Power supply independent from the main device - The same high-speed performance that of the main device - Safety output state - Easy connection, removal and replacement - Galvanic isolation between the power supply and I/O groups - Wide ambient temperature range
