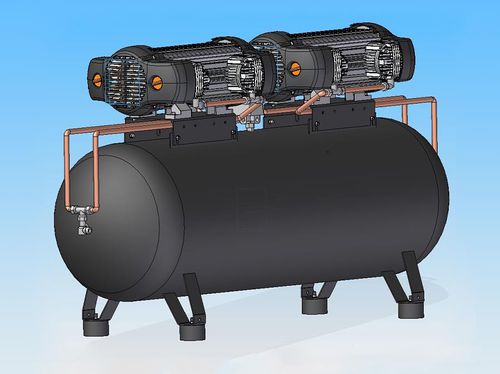

Piston compressor TANK 200 S8airelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electric
- Portability
- stationary
- Lubrication
- oil-free
- Voltage
- 400 V
- Other characteristics
- tank-mounted
- Tank volume
200 l
(52.8 gal)- Pressure
9 bar
(130.53 psi)- Flow
720 l/min
(190.2 us gal/min)- Power
1.8 kW
(2.45 hp)- Length
1,434 mm
(56.46 in)- Width
460 mm
(18.11 in)- Height
730 mm
(28.74 in)- Weight
160.5 kg
(353.8 lb)- Noise level
81 dB
Description
This model of air compressor, of the “Rocking Piston”-type, is composed of a sliding piston placed inside a cylinder (thermally treated) and mounted on a connecting rod, which is placed on a pillow block that is lubricated for life for with a special grease for use with high temperatures.
