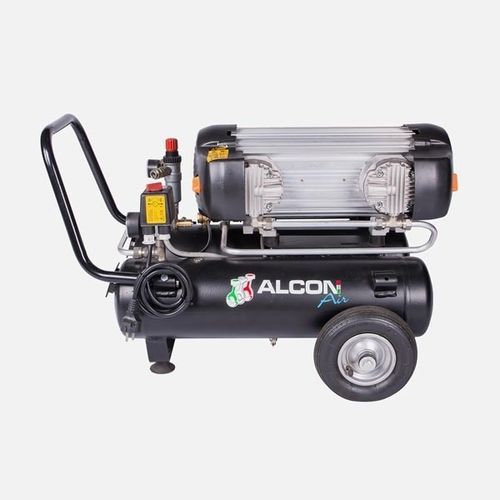

Piston compressor MOVABLE 11+11airelectricon casters
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electric
- Portability
- on casters
- Lubrication
- oil-free
- Voltage
- 380 V
- Other characteristics
- tank-mounted
- Tank volume
11 l
(2.9 gal)- Pressure
9 bar
(130.53 psi)- Flow
360 l/min
(95.1 us gal/min)- Power
1.8 kW
(2.45 hp)- Length
800 mm
(31.5 in)- Width
500 mm
(19.69 in)- Height
470 mm
(18.5 in)- Weight
55 kg
(121.3 lb)- Noise level
75 dB
Description
The single-cylinder and two-cylinder units of the MiniTop series belong to the Oil-less category, which means that the motor of the air compressor operates without oil. This model, of the “Rocking Piston”-type, is composed of a sliding piston placed inside a cylinder (thermally treated) and mounted on a connecting rod, which is placed on a pillow block that is lubricated for life with a special grease for use with high temperatures.
