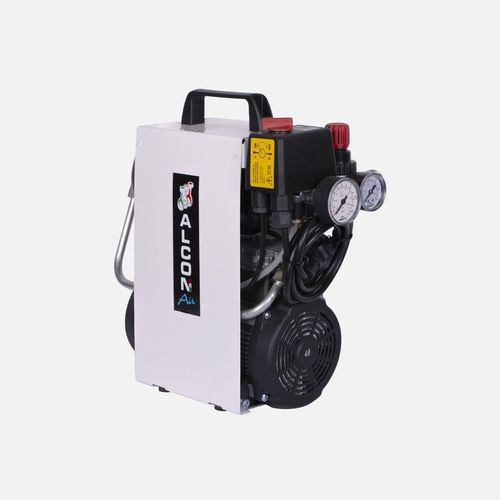

Piston compressor TANK 2airelectricportable
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electric
- Portability
- portable
- Lubrication
- oil-free
- Voltage
- 380 V
- Other characteristics
- tank-mounted
- Tank volume
2 l
(0.5 gal)- Pressure
8 bar
(116.03 psi)- Flow
87 l/min
(22.98 us gal/min)- Power
0.45 kW
(0.61 hp)- Length
350 mm
(13.78 in)- Width
200 mm
(7.87 in)- Height
350 mm
(13.78 in)- Weight
10 kg
(22 lb)- Noise level
70 dB
Description
The single-cylinder and twin-cylinder units of the MiniTop series belong to the “dry” category, indicating the absence of oil in the engine during compressor operation. This model, of the “Rocking Piston” type, is composed of a piston floating inside a cylinder (heat treated) and fixed to a connecting rod, placed on a ball bearing lubricated for life with a special grease suitable for use at high temperatures.
