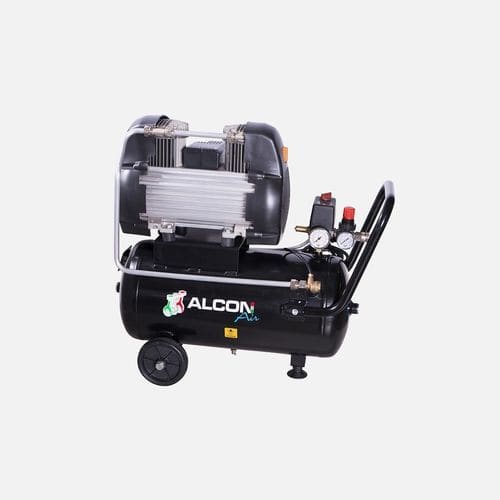

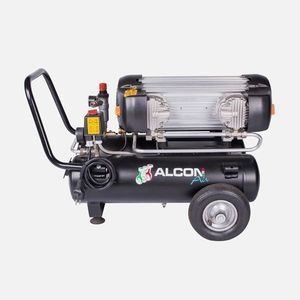

Piston compressor MOVABLE 25 S1 – S2 – S3airelectricon casters
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electric
- Portability
- on casters
- Lubrication
- oil-free
- Voltage
- 380 V
- Other characteristics
- tank-mounted, mini
- Tank volume
25 l
(6.6 gal)- Pressure
8 bar, 9 bar
(116.03 psi, 130.53 psi)- Flow
90 l/min, 180 l/min, 270 l/min
(23.78 us gal/min, 47.55 us gal/min, 71.33 us gal/min)- Power
0.55 kW, 0.75 kW, 1.5 kW
(0.75 hp, 1.02 hp, 2.04 hp)- Length
620 mm
(24.41 in)- Width
250 mm
(9.84 in)- Height
650 mm
(25.59 in)- Weight
20 kg, 29 kg, 34 kg
(44.1 lb, 63.9 lb, 75 lb)- Noise level
71 dB, 72 dB, 74 dB
Description
MINI TOP SERIES COMPRESSORS ON TANK Single cylinder and twin cylinder MiniTop units on fixed tank or tank with wheels.
The single-cylinder and twin-cylinder units of the MiniTop series belong to the “dry” category, indicating the absence of oil in the engine during compressor operation. This model, of the “Rocking Piston” type, is composed of a piston floating inside a cylinder (heat treated) and fixed to a connecting rod, placed on a ball bearing lubricated for life with a special grease suitable for use at high temperatures.
