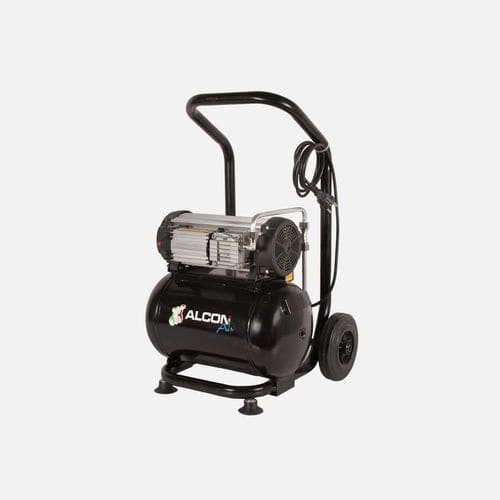

Piston compressor MOVABLE 10airelectricon casters
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electric
- Portability
- on casters
- Lubrication
- oil-free
- Voltage
- 380 V
- Other characteristics
- tank-mounted
- Tank volume
10 l
(2.6 gal)- Pressure
8 bar
(116.03 psi)- Flow
175 l/min
(46.23 us gal/min)- Power
0.62 kW
(0.84 hp)- Length
544 mm
(21.42 in)- Width
400 mm
(15.75 in)- Height
820 mm
(32.28 in)- Weight
19 kg
(41.9 lb)- Noise level
70 dB
Description
The single-cylinder and two-cylinder units of the MiniTop series belong to the Oil-less category, which means that the motor of the air compressor operates without oil. This model, of the “Rocking Piston”-type, is composed of a sliding piston placed inside a cylinder (thermally treated) and mounted on a connecting road, which is placed on a pillow block that is lubricated for life with a special grease for use with high temperatures.
Catalogs
INDUSTRIAL COMPRESSORS
24 Pages
Other ALCONAIR products
Coaxial compressors
