Fuel pump KB

electricself-primingstationary

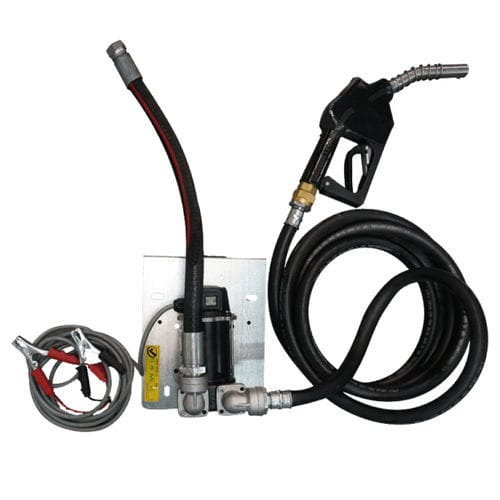

The KB12V pump is suitable for the transfer of Diesel and non-vehicle diesel. It connects to a 12 V battery, ideal for sites not connected to the mains. Its compact space requirement allows it to be easily built into our TransCube and Abbi transport tanks. Standard equipment • • Brush motor powered by low-voltage direct current with closed intermittent cycle with protection rating IP55 according to IEC-EN 60034-5, directly clamped to the pump casing • Rotary self-priming vane pump, equipped with a by-pass relief valve • 4 linear meters of cable with battery clamps The KB12V pump can be used to transfer Diesel and non-vehicle diesel. It has a flow rate of up to 40 L/min (at the pump outlet). The pump connects to a 12 V battery using its 4 metres of cable with clamps (provided). Motor power and intensity: 12 V – 300 W – 22 A KB12V allows maximum working cycles of 30 continuous minutes (do not run empty for more than one minute). Weight: approx. 4 kg Also available in 12-24 V version. Compliant with Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU
