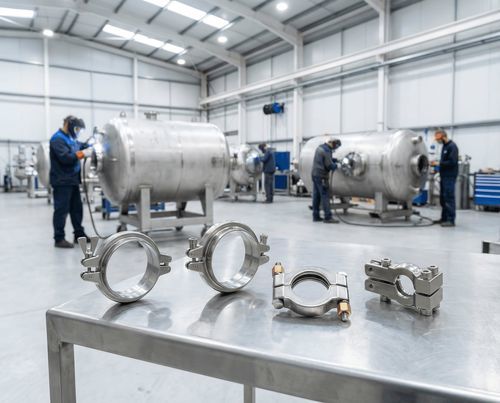

Clamping pipe coupling

quick-releasequick-coupling304 stainless steel

Product Overview
Precision-engineered hygienic Tri‑Clamp connection systems for pharmaceutical, biotech, and food processing. DIN 32676, ASME BPE, and 3‑A compliant assemblies delivering sterile, leak‑proof seals with rapid assembly/disassembly for CIP/SIP operations. Electropolished ferrule surfaces (Ra ≤ 0.8 µm) and external clamp compression eliminate crevices and enable full cleanability while meeting EU GMP and FDA hygienic design requirements.

Key Benefits

• Rapid connection/disconnection: Tool‑free clamp operation enables equipment disassembly in seconds for cleaning validation, maintenance, or process reconfiguration without specialized tools.
• Crevice‑free hygienic design: Smooth electropolished surfaces (Ra ≤ 0.8 µm) with no dead legs, threads, or gasket compression grooves eliminate bacterial entrapment sites and enable complete CIP/SIP efficacy.
• Validated seal integrity: Precisely controlled compression on FDA‑compliant gaskets creates reliable, leak‑free seals validated for process pressures, thermal cycles, and aggressive cleaning chemistries.
• Regulatory compliance and traceability: Heat numbers and EN 10204 3.1/3.2 material certificates; conformity to DIN 32676, ASME BPE, 3‑A Sanitary, and EHEDG.

Product Types and Features
Standard Twin‑Hinge Clamps
Single‑bolt hygienic clamps with dual‑pin hinge for even gasket compression and reliable sealing in pharma and food processing systems.

• Material: 316/316L stainless steel
• Sizes: DN15 to DN300 (1/2" to 12")
• Pressure rating: Up to 60 bar (870 psi)
• Temperature rating: Up to 232°C (450°F)
• Two‑pin hinge for uniform clamping force
• Single bolt with wing nut or hex nut options
• DIN 32676 and 3‑A Sanitary compliant; CE marking standard

Heavy‑Duty Double‑Bolt Clamps
Non‑hinged clamps with two‑bolt fastening for enhanced clamping force distribution in large‑diameter connections.

• Material: 316 stainless steel
• Sizes: DN150 to DN300 (6" to 12")
• Pressure rating: Up to 36 bar (522 psi)
• Temperature: 232°C (450°F) and higher
• Dual‑bolt configuration (hingeless)
• Wing nut or hex nut options
• Optimized for large‑diameter piping

High‑Pressure Dual‑Bolt Clamps
Reinforced clamp profiles engineered for elevated‑pressure applications requiring superior clamping force without hinges.

• Material: 304 stainless steel
• Sizes: DN15 to DN150 (1/2" to 6")
• Pressure rating: Up to 100 bar (1450 psi)
• Temperature: 232°C (450°F) and higher
• Heavy‑section profile; dual‑bolt (hingeless)
• Stainless or brass hex nut options; CE compliant for pressure service

ASME Pressure Vessel Clamps
Designed to ASME Section VIII Appendix 24 requirements for pressure vessels, filter housings and critical high‑pressure pharmaceutical equipment.

• Material: 316 SS (fully traceable)
• Sizes: DN25 to DN300 (1" to 12")
• Pressure rating: Up to 171 bar (2480 psi)
• Triple‑bolt configuration with hinge
• ASME Section VIII Appendix 24 compliant; full material traceability documentation

Anti‑Galling Premium Clamps
Investment‑cast clamps with specialized surface treatments to prevent adhesive wear and galling in high‑cycle automated systems.

• Investment casting (ASME SA‑351/SA‑351M)
• Pickled and passivated; heat treated per ASME SA‑315
• Barrel polished and hydraulically sized to maintain torque specs
• Eliminates thread seizing; extended service life for automated CIP

Safety & Lockout Clamps
Safety‑engineered clamps with accidental‑opening prevention and padlock‑compatible shrouds for LOTO compliance.

• Material: 316 stainless steel
• Sizes: DN15 to DN300
• Safety gate prevents bolt release; shrouded hex nut with padlock provision
• Prevents unintentional opening under pressure; LOTO compliance for maintenance safety

Applications

• Pharmaceutical manufacturing: API synthesis, sterile formulation, bioreactors, clean utilities and GMP process equipment.
• Biotechnology: single‑use systems, cell culture, downstream purification, chromatography skids.
• Food & beverage: brewing, dairy processing, beverage production, sanitary CIP loops.
• Cosmetics & personal care: emulsion prep, sterile filling lines, fragrance blending.
• Fine chemicals, nutraceuticals and R&D pilot systems requiring cleanable, traceable connections.

Technical specifications

• Clamp material (standard): 316/316L SS
• Clamp material (HP): 304 SS
• Fasteners: 316 SS bolts and nuts
• Gasket materials: EPDM, Silicone, Viton, PTFE (FDA options)
• Ferrule finish: Ra ≤ 0.8 µm (electropolished)
• Clamp finish: polished or satin
• Hinge: dual‑pin (standard models)
• Heat treatment: ASME SA‑315 (premium)
• Standard pressure: Up to 60 bar; High pressure: Up to 100 bar; ASME pressure: Up to 171 bar
• Temperature range: −40°C to +400°C
• Vacuum service: full vacuum compatible
• Thermal cycling: SIP/CIP validated
• Connection cycles: 1000+ (anti‑galling models)
• Leak integrity: helium leak tested
• Standards: DIN 32676 Series A; ASME BPE; 3‑A Sanitary; EHEDG; ISO 2852; ASME Sec. VIII App. 24
• Material certificates: EN 10204 Type 3.1 / 3.2
• Gasket compliance: FDA 21 CFR 177.1550 (where applicable)
• Sizes available: DN15 (1/2") to DN300 (12"), common DN25–DN100 (1"–4"); custom sizes on request
