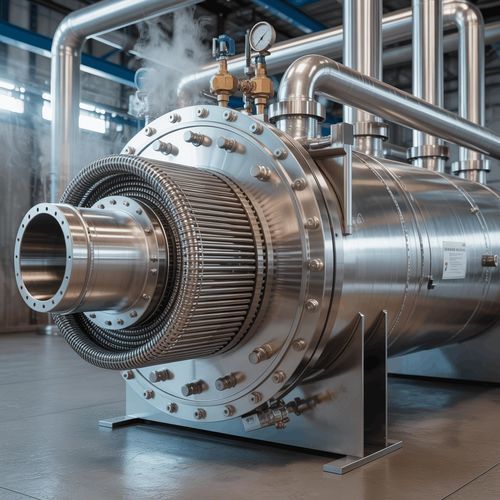

Shell and tube heat exchanger

liquid/liquidwater/oilwater/water

Product Overview
Custom-engineered ASME- and PED-certified shell and tube heat exchangers for chemical, petrochemical and industrial manufacturing processes. TEMA-standard designs optimized for thermal efficiency in high-pressure, high-temperature environments.

Key Capabilities

• Custom thermal design: counterflow, parallel or crossflow; optimized baffle spacing, tube layout and pass configuration to maximize heat recovery efficiency.
• ASME & PED compliance: fabrication per ASME Section VIII and PED 2014/68/EU with full design calculations, material certificates and hydrostatic testing documentation.
• Engineered material selection: carbon steel, 304/316 stainless, duplex stainless, nickel alloys (Inconel, Hastelloy), titanium, copper alloys and other exotic materials as required.

TEMA Configurations

• Fixed Tubesheet (BEM, AEL, NEN): economical design with tubes welded to tubesheets fixed to both shell ends. Ideal for clean services where shell-side mechanical cleaning is not required.
  • Lowest cost per heat transfer area
  • Simple, rugged construction
  • Tubeside mechanically cleanable
  • Suitable for similar shell/tube temperatures
  • Maximum surface in given shell diameter
  • Optional expansion joint for thermal stress
  • TEMA class BEM, AEL, NEN
• U-Tube Bundle (AEU, BEU): single tubesheet with U-bent tubes allowing thermal expansion; bundle removable for shell-side cleaning without disturbing piping.
  • Accommodates thermal expansion
  • Removable tube bundle
  • No expansion joint required
  • Shell-side accessible for cleaning
  • Lower cost than floating head
  • Limited to even tube passes
  • Tubeside cleaning more difficult
• Floating Head (AES, BES, AET, BET): one tubesheet fixed, one floating to accommodate differential expansion; allows complete mechanical cleaning of both shell and tube sides.
  • Handles high thermal differentials
  • Both sides mechanically cleanable
  • Removable tube bundle
  • Suitable for fouling services
  • Any number of tube passes
  • Higher cost than fixed or U-tube
  • TEMA S, T, P, W rear heads

Applications

• Chemical & petrochemical: process cooling, reactor temperature control, condensers, reboilers, heat removal and product heating.
• Oil & gas refining: crude preheat, product coolers, intercoolers, vaporizers and heat recovery.
• Pharmaceutical: API synthesis control, solvent recovery condensers, bioreactor cooling, WFI heat exchangers.
• OEM integration: custom exchangers for process skids, modular plants and packaged systems.
• Power generation & renewables: condensers, feedwater heating, lube oil cooling, biogas/biodiesel/biomass heat recovery, geothermal and solar thermal applications.

Technical Specifications
Maximum Length: 25 meters (82 ft)
Maximum Diameter: 4.3 meters (14 ft)
Design Pressure: Up to 275 bar (4000 psi)
Design Temperature: -50°C to +400°C
Tube Diameter: 12.7–50.8 mm (1/2"–2")
Tube Pitch: Triangular or square
Tube Passes: 1, 2, 4, 6, 8 pass
Baffle Type: Single/double segmental

Material Options
Carbon Steel: P265GH, P355GH (EN)
Stainless Steel: 304/304L, 316/316L
Duplex Stainless: 1.4462 (2205), 1.4410
Nickel Alloys: Inconel 600/625, Hastelloy
Titanium: Gr. 1, Gr. 2
Copper Alloys: Admiralty brass, Cu-Ni
Tube Material: Seamless or welded
Tubesheet: Solid plate or clad

Standards & Codes
Pressure Equipment: PED 2014/68/EU
ASME Code: Section VIII Div. 1/2
TEMA Standards: Class R, C, B designs
Material Standards: EN 10028, ASTM A240
Welding: EN ISO 3834-2
NDT Testing: RT, UT, PT, MT per EN
Material Certifications: EN 10204 Type 3.1/3.2
Hydro Testing: 1.3× or 1.43× MAWP
