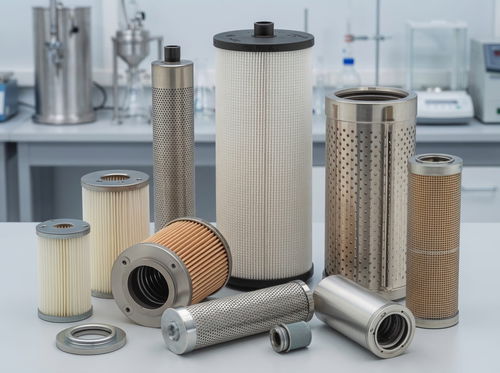

Fiberglass filter element

synthetic compositemicroglassstainless steel

Overview
Drop-in replacement filter elements for hydraulic, lubrication, coalescer and separator systems used in oil & gas, petrochemical, power and industrial applications. ISO-tested alternatives to Pall, Hydac, Parker, Mahle and other OEMs, manufactured to match dimensional, performance and chemical compatibility of original cartridges. Media options include HV and Lydall glass fiber, synthetic medias and stainless steel mesh.

Advantages

• Exact cross-reference compatibility: catalogued with OEM equivalent part numbers for dimensional and performance match.
• Manufacturing traceability and quality: produced in ISO 9001:2015 / ISO 14001:2015 / ISO 45001:2018 facilities with per-batch CoC available.
• Tested to international filtration standards including ISO 16889 (multi-pass) and ISO 2941/2942/2943/3724/3968.
• Commercial terms adapted to EU clients: standard lead time 10–15 working days, minimum order 5 pieces per model, Incoterms EXW or CIF to EU ports.

Replacement Filter Element Range
Pall Filter Element Replacements

• Alternatives for Pall HC, UE and Ultipor III series used in hydraulic and lubricant systems (examples: HC7400, HC9600, HC9400, HC9100; UE219, UE319, UE619).
• Media: HV and Lydall fiberglass.
• Filtration ratings available: 1, 3, 6, 12, 25 µm; beta ratios β ≥ 200 (ISO 16889).

Hydac Filter Element Replacements

• Compatible with Hydac D and R series pressure and return line filters (0030D to 2600R series).
• Media types: BN/HC, BN3HC, BN4HC; high collapse resistance and efficiency.
• Filtration ratings: 1, 3, 5, 10, 20, 25 µm.

Parker Filter Element Replacements

• Direct replacements for wide Parker range (examples: 936701Q to PR3451Q; FC1091, FC1240, FC7202).
• Complete cross-reference catalog available; standard micron ratings supported.
• Glass fiber construction to meet OEM performance parameters.

Mahle Filter Element Replacements

• Replacements for Mahle PI series elements (examples: PI2130SMX, PI2211SMXVST, PI7304).
• Media configurations: SMX, MIC, DRG; full dimensional compatibility and multiple filtration grades.

Internormen Filter Element Replacements

• Alternatives for Internormen 01.E series (01.E.30 to 01.E.1200) in coarse, ordinary, precision and ultra-fine grades.
• Media options: VG, SG, HR; sealing options E (EPDM), P (NBR); includes NL series.

EPE / Eppensteiner Replacements

• Compatibility for heavy hydraulic applications (examples: 1.0020H10SL to 2.90K3P series).
• Grades: H10SL, H10XL, AS10, AS20 for rolling mills, continuous casting and heavy-duty filtration.

Argo & MP-Filtri Replacements

• Argo series covered (K, V, P, S, W examples) and MP-Filtri ranges (C, CA, CU, HP, SF, STR series).
• Glass fiber construction ensuring contamination control and matching OEM performance parameters.

Stauff, Filtrec & Taiseikogyo

• Drop-in replacements for Stauff RS/SS/RP/RL, Filtrec A/D/FS and Taiseikogyo G-UL/P-G elements with full catalog coverage.

Hy-Pro, Vickers & Wind Power

• Alternatives for Hy-Pro HP60L to HP250L series, Vickers V/OF/H series and dedicated gearbox models for wind turbines (36+ models).

Fuel & Gas Separation
Coalescer Filter Elements

• Composite hydrophilic media cartridges for demulsification and coalescence to remove emulsified water from fuels and oils (Facet, Velcon, Pall equivalents).

Separator Filter Elements

• Hydrophobic media elements to repel coalesced water droplets and permit clean product flow; two-stage separation designs.

Natural Gas Filter Elements

• Dedicated gas/liquid and liquid/solid separation cartridges for gathering, transmission and distribution (examples: PCHG, FG, G, JFG/JMG/JFS series).

Technical Specifications & Standards
Filtration ratings: 1, 3, 5, 6, 10, 12, 20, 25 µm
Beta ratio (β): ≥ 200 (per ISO 16889)
Filtration efficiency: ≥ 99.5%
Filter media: HV / Lydall glass fiber, synthetic, stainless steel mesh
End cap materials: carbon steel, stainless steel, aluminum
Sealing materials: NBR, FKM (Viton), EPDM

Testing & Certification Standards
ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 16889

Manufacturing Certifications & Commercial

• ISO 9001:2015, ISO 14001:2015, ISO 45001:2018; third-party SGS supplier assessment.
• Per-batch Certificate of Conformity (CoC) available on request.
• Production lead time: 10–15 working days; minimum order quantity: 5 pieces per model.
• Incoterms: EXW or CIF (European ports); payment: LC, T/T, D/P.
• Nearest export port referenced: Qingdao (direct EU shipping options).

Technical characteristics

• Filtration ratings: 1–25 µm (1, 3, 5, 6, 10, 12, 20, 25 µm).
• Beta ratio: β ≥ 200 (ISO 16889).
• Filtration efficiency: ≥ 99.5%.
• Media: HV and Lydall glass fiber, synthetic media, stainless steel mesh options.
• End caps: carbon steel, stainless steel, aluminum.
• Seals: NBR, FKM (Viton), EPDM.
• Standards: ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 16889.
• Manufacturing certifications and traceability per order.
• MOQ: 5 pieces per model; lead time: 10–15 working days; Incoterms EXW/CIF.
