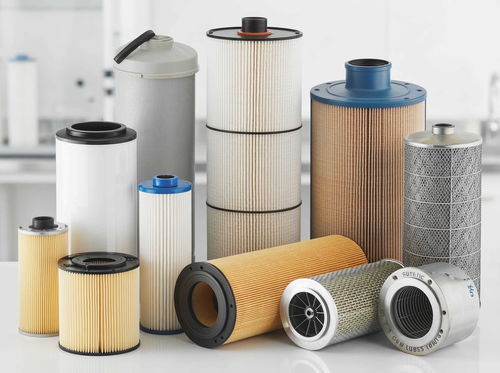

Air filter cartridge

process waterfor micro-filtrationfor nanofiltration

Overview
A complete range of process water cartridges and air filtration elements engineered for European industrial facilities. From RO pre-filtration and power plant condensate to pharmaceutical-grade membrane cartridges and heavy-duty dust collection. Filtration ratings from 0.1 to 150 microns, manufactured in an ISO 9001 certified facility.

Key product families

• Water cartridges: four high flow series (L, K, M, R), PP melt-blown depth filters, string wound cartridges, microporous pleated membrane cartridges in PP, PES, PTFE, Nylon 6 and PVDF.
• Air cartridges: cellulose and polyester dust collector cartridges, gas turbine air intake elements (including Donaldson replacement types), pleated bag filters and high-temperature nanofiber series up to 190°C.

Water Filtration Range — Process Water Filter Cartridges

• PP Melt-Blown Depth Filter Cartridges: Cost-effective polypropylene depth filtration for pre-treatment and general industrial water. OD: 63mm and 110mm configurations; Lengths: 9.75", 10", 20", 30", 40", 50", 60"; Filtration: 1, 3, 5, 10, 25, 50, 75, 100, 150 μm; 100% polypropylene construction; Max operating temperature: 80°C; Max differential pressure: 2.0 Bar at 21°C.
• String Wound Filter Cartridges: Textile fiber yarn wrapped on porous skeletons for progressive density depth filtration. OD: 62mm, ID: 28-30mm; Media: PP, absorbent cotton, glass fiber; Filtration: 0.5, 1, 5, 10, 20, 30, 50, 75, 100 μm; Chemical compatibility with acids and alkalis; Stainless steel center rod option; Max operating temperature: 60°C (PP).
• Microporous Pleated Membrane Cartridges: Precision membrane cartridges for pharmaceutical, food & beverage and electronics. Media: PP, PES, PTFE, Nylon 6, PVDF; OD: 69mm, lengths 10" to 40"; Filtration: 0.1, 0.22, 0.45, 1, 3, 5, 10, 20, 50 μm; Materials meet FDA requirements; Thread, 222-fin, 226-fin interfaces; Max differential: 2.8 Bar at 65°C.
• Power Plant Condensate Filter Elements: Continuous high-performance fiber elements designed for condensate treatment in thermal and nuclear power plants. Flushable and reusable; entwined fiber construction prevents deformation and shedding; reduces pre-wash cycle time; purpose-built for power generation condensate.
• L & K Series High Flow Cartridges: Large-diameter (6" / 152mm) high flow cartridges for RO pre-filtration and desalination. L Series: inner/outer skeleton, 20"-60" lengths. K Series: single/double O-ring, flows up to 70 m³/h. Filtration: 0.5, 1, 2, 3, 5, 10, 20, 40, 70, 100 μm. Media options: PP and glass fiber. Seals: silicone, EPDM, Viton, nitrile. β ≥ 1000 filtration efficiency.
• M & R Series High Flow Cartridges: Ultra-high capacity cartridges for municipal and large-scale industrial applications. M Series: 6.5" / 165mm OD, up to 113 m³/h (500 GPM), radial and vertical pleating options. R Series: 6.75" / 171mm OD, β > 1000. Lengths: 20", 40", 60". Polypropylene and glass fiber media; reduces housing size requirements.

Air Filtration Range — Air & Dust Filtration Cartridges

• Cellulose Dust Collector Cartridges: For metalworking, shot blasting, mining and general manufacturing. Models: LF/Z3266, LF/Z3275, LF/Z3566, LF/Z3288, LF/Z3290. OD: 324-352mm, ID: 213-241mm. 100% cellulose or cellulose/polyester blend. Flame retardant treatment available. Olive-shape pleats maintain uniform spacing. Max operating temperature: 65°C.
• Polyester Dust Collector Cartridges: High-efficiency spun bond polyester media for fine dust (metalworking, welding fume, powder coating). Models: LF/P3266, LF/P3566, LF/P3275, LF/P3288, LF/P3290. Optional PTFE membrane coating. Antistatic and oil/water repellent treatments. Filtration efficiency > 99.99%. Max operating temperature: 120°C.
• Gas Turbine Air Intake Cartridges: Reliable cartridges for gas turbines and compressors, including Donaldson replacement types. Cylindrical and conical shapes, standard and twist-lock interfaces. Media: polyester/cellulose and nanofiber blends. Filter areas: 16.4 to 34.3 m². TenKay type configurations available.
• Pleated Bag Filters: High-performance pleated bag filters for heavy-duty dust collection (cement, foundry, power). Options: spun bond polyester (LF-P1/P2 to 135°C), antistatic polyester (LF-D1/D2 to 135°C), polyester + PTFE (LF-F1/F2 to 135°C), high-temp nanofiber (LF-N1/N2 to 190°C). Filter areas: 2.3 to 4.6 m². Water/oil repellent and PTFE membrane options.

Applications

• RO & desalination pre-treatment and reverse osmosis protection.
• Power generation: condensate polishing, boiler make-up and cooling circuits.
• Pharmaceutical: sterile water and WFI pre-filtration with FDA-compliant membranes.
• Food & beverage: wine, beer, syrup, dairy and bottled water filtration using food-grade PP and membrane cartridges.
• Steel & metallurgy: circulating water treatment and blast furnace gas dust removal.
• Chemical processing: acid, alkali and solvent filtration with chemically resistant membranes.
• Cement & mining: heavy-duty dust collection in high-particulate environments.
• Welding & cutting: welding fume and cutting particulate extraction with PTFE-coated polyester cartridges.

Technical specifications

• Filtration range (water): 0.1 to 150 μm.
• High flow capacity: up to 113 m³/h per cartridge (M Series).
• Membrane media: PP, PES, PTFE, Nylon 6, PVDF.
• Depth filter media: PP melt-blown, string wound.
• Water cartridge operating temperature: up to 82°C (pleated PP).
• Water cartridge pH range: 1 - 13 (media dependent).
• PP melt-blown: OD 63mm & 110mm; lengths 9.75"–60"; filtration 1–150 μm; max ΔP 2.0 Bar at 21°C.
• String wound: OD 62mm, ID 28–30mm; filtration 0.5–100 μm; max temp 60°C (PP).
• Microporous pleated (membrane): OD 69mm; lengths 10"–40"; filtration 0.1–50 μm; max differential 2.8 Bar at 65°C; FDA-compliant materials available; interfaces: 222-fin, 226-fin, thread, DOE.
• High flow series dimensions: L Series OD 6" (152mm); K Series OD 6" (152mm, 3.5" ID); M Series OD 6.5" (165mm); R Series OD 6.75" (171mm).
• High flow available lengths: 20", 40", 60"; max ΔP change-out: 2.4–2.5 Bar at 20°C.
• Seals & interfaces: silicone, EPDM, Viton, Buna-N; membrane interfaces: 222-fin, 226-fin, thread, DOE; high flow interfaces: single O-ring, double O-ring, flat press.
• Air cartridge media: cellulose, polyester, PTFE membrane; air filtration efficiency > 99.99% (polyester + PTFE).
• Air max temperatures: cartridges up to 120°C (polyester); bag filters up to 190°C (nanofiber series).
• Gas turbine filter areas: 16.4 – 34.3 m²; bag filter area: 2.3 – 4.6 m².
• Typical dust cartridge models and sizes: cellulose LF/Z32xx series (OD 324–352mm); polyester LF/P32xx / LF/P35xx; pleated bag filter types LF-P, LF-D, LF-F, LF-N variants.
• Customized configurations available on request (media, seals, lengths, interfaces).
