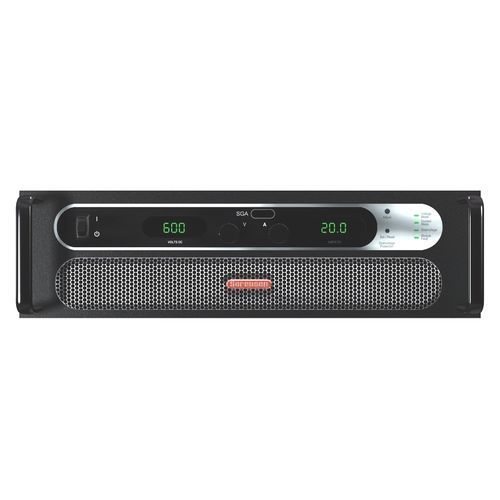

Tabletop power supply SGA

DCelectronic equipmenthigh-power

Overview
The Sorensen SGA Series modular, programmable DC power supplies deliver scalable DC power from single chassis (4–30 kW) to multi-chassis systems up to 1.9 MW. The architecture uses 5 kW building-block modules for flexible voltage/current configurations, with front air intake cooling that enables high rack density and stackable installation.

Key specifications (from product summary table)

• Model: SGA Series
• Voltage range: 10 V to 1000 V
• Current range: 5 A to 2400 A
• Power per chassis: 4 kW to 30 kW
• Power module size: 5 kW per module
• Modules per chassis: 1 to 6 (depending on voltage)
• Parallel capability: Up to 1.9 MW total, up to 32,500 A
• High power density: up to 15 kW down to 20 VDC in a 3U package
• Cooling/packaging: Front air intake for stacked installation
• Control/remote options: Analog, IEEE-488.2 + RS-232, Ethernet/RS-232, Isolated Analog, combined option packages

Applications

• Burn-in
• Compliance testing
• Materials research
• Process control
• Product validation
• Automotive electronics
• Rackmount ATE systems
• Battery charging

Product features and design details
The SGA Series is based on a 5 kW modular power block that can be installed one to six times per chassis to provide 4–30 kW per chassis depending on voltage selection. Chassis can be paralleled to scale total system power up to 1.9 MW while presenting a single-system current output. Front air-intake cooling and compact 3U/6U packaging increase rack density and permit stacked installations without side clearance.

Manuals, Data Sheets and Software (available resources)
Available documentation and software include: SGA Operation Manual, Japanese operations manual, Programming guides for Ethernet/IEEE/RS-232, SG Series Data Sheet, SGA vs SGX infographic, LabVIEW drivers, firmware packages, virtual panels, Flash Wizard utilities, GUI packages and IVI-COM wrappers.

Options and accessories (summary)
Control options:

• A = Analog

Input voltage options:

• C = 187 / 242 VAC input
• D = 342 / 440 VAC input
• E = 396 / 528 VAC input

Remote control and combined options:

• 0A = No options
• 1A = IEEE-488.2 + RS-232C
• 1C = Ethernet / RS-232
• 1D = Isolated Analog Control
• 1E = Shaft Locks
• 2A = 1A + 1D
• 2G = 1A + 1E
• 2H = 1C + 1E
• 2J = 1D + 1E
• 3C = 1A + 1D + 1E
• 3G = 1C + 1D + 1E

Process and calibration options:

• AA = No options
• AB = Certificate of Calibration to ANSI / NCSL Z540-1 (includes test data)

Modifications and accessories (examples):

• AJ = Front panel dust filter - factory installed (3U only)
• CV = 400 Hz AC input @ 208 VAC (6U only; STD on 3U)
• PF = Passive power factor correction to 0.9 (selected voltage ranges)
• 890-453-03 = Paralleling cable (for up to 5 units)
• K550212-01 = 3U rack slides (5/10/15 kW models)
• K550213-01 = 6U rack slides (20/25/30 kW models)
• K550532-01 = Front panel dust filter kit (field installation, 3U)
• 9550589-01 = AC input cover (3U)

Notes

• Modular 5 kW architecture supports flexible chassis configurations and high total-system power through paralleling.
• Front air intake and compact packaging enable high rack density and stackable installation.

Technical specifications

• Model name: SGA Series
• Voltage range: 10 V to 1000 V
• Current range: 5 A to 2400 A
• Power per chassis: 4 kW to 30 kW
• Power module size: 5 kW per module
• Modules per chassis: 1 to 6 (depending on voltage)
• Parallel capability: Up to 1.9 MW total, up to 32,500 A
• High power density: up to 15 kW down to 20 VDC in a 3U package
• Cooling/packaging: Front air intake allowing stacked units without required clearance
• Control/remote options: Analog, IEEE-488.2 + RS-232C, Ethernet/RS-232, Isolated Analog Control, combined packages
• Process & calibration option: Certificate of Calibration to ANSI / NCSL Z540-1 (AB)
