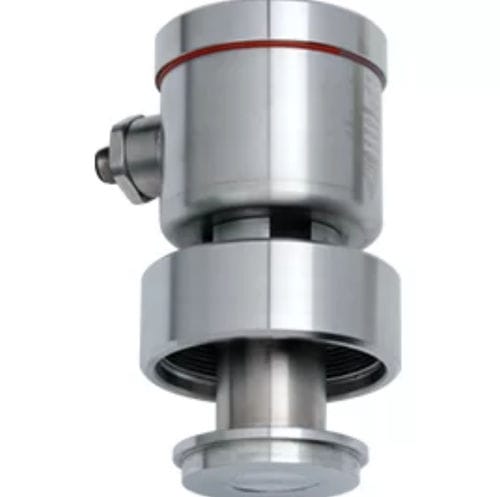

Hydrostatic level transmitter SXfor liquids4-20 mAfor storage tanks
Add to favorites
Compare this product
Characteristics
- Technology
- hydrostatic
- Medium
- for liquids
- Interface
- 4-20 mA
- Applications
- for storage tanks, for the pharmaceutical industry
- Other characteristics
- stainless steel, compact
- Process pressure
Min.: 0 bar
(0 psi)Max.: 4 bar
(58.02 psi)- Process temperature
Min.: -18 °C
(-0 °F)Max.: 130 °C
(266 °F)
Description
Hydrostatic level measurement in vessels
• Sealed measurement cell without any contact to atmosphere – no drift problems caused by condensation
• Hermetically closed measuring cell (Condensation proof)
• Very high accuracy and long term stability
• 3 years warranty
• Stainless steel membrane 316L
• Process temperature up to 130 °C / 266°F
• Applicable for differential pressure measurement with 2 x LAR and evaluation device
• Installation in vessels from below or at the side
Catalogs
SX
4 Pages
