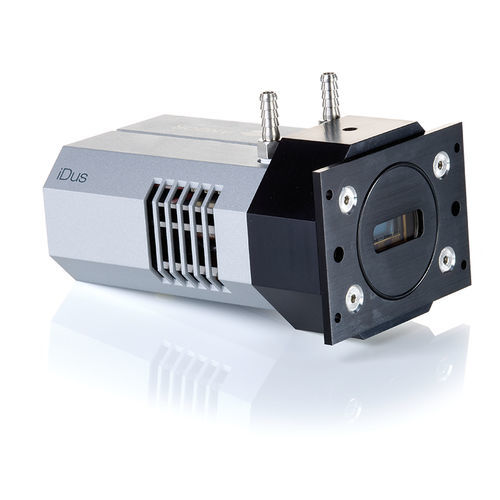

High dynamic range camera iDus 401

industrialfor scientific applicationsfor spectroscopy

The iDus 401 features a deep-cooled, 1024 x 127 pixels CCD array ideally suited to low-light applications including fluorescence/photoluminescence, Absorption/Transmission and Raman spectroscopy. The 401’s range of Back-Illuminated and Back-Illuminated Deep-Depletion sensor options provide optimised detection performance from UV through Visible to Near IR. Full overview Peak QE of 95% TE cooling to -100°C UltraVac™ Single window design Fringe suppression technology The USB2.0-based iDus series is a compact, yet feature-rich platform suitable for demanding spectroscopy applications such as low-light UV/NIR Photoluminence or Raman spectroscopy, as well as day-to-day routine laboratory operation and integration into industry-grade systems. The iDus 401 boasts market-leading deep thermo-electric cooling to -100°C, complemented by Andor’s UltravacTM technology with its un-matched reliability track record in the scientific and industrial community. The iDus low-noise electronics allows seamless access to the best signal-to-noise ratio performance for the widest range of photon detection regimes. Anti-fringing comes as standard on back-thinned & back-illuminated sensors for this 1024 x 127, 26 μm pixels array optimized for high dynamic range, high resolution and rapid data acquisition from Far UV to NIR. Peak QE up to 95% - Visible-optimized ‘BVF’ & infrared-optimized ‘BR-DD’ model Fringe suppression technology as standard - Fringing greatly eliminated (Deep-Depletion) or minimized (Back-Thinned ‘BVF‘)
