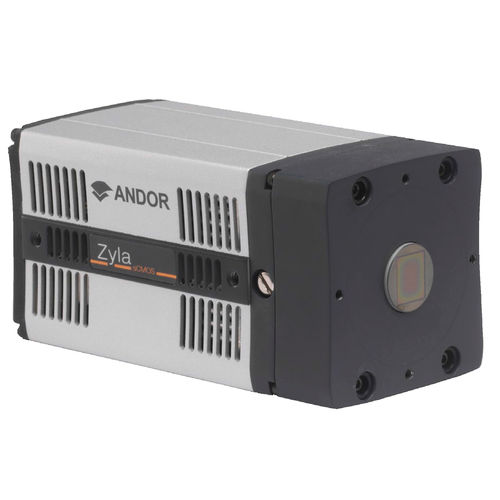

Microscope camera Zyla-HF

machine visionvisiblesCMOS

Andor’s Zyla 5.5 HF outstanding design delivers the highest transmission and spatial resolution performance associated with state-of-the-art single fiber optic plate bonding, while also taking advantage of the very fast frame rate, ultra-low noise performance and exceptional field of view of the Zyla 5.5. • 100 fps full frame sustained • Fiber optic plate coupling • 5.5 megapixel sensor format with high resolution and 6.5 μm pixels • 1.2 e- read noise • Rolling and Global shutter Andor’s Zyla 5.5 HF outstanding design delivers the highest transmission and spatial resolution performance associated with state-of-the-art single fiber optic plate bonding, while also taking advantage of the very fast frame rate, ultra-low noise performance and exceptional field of view of the Zyla 5.5. Its compact format, multiple mounting points and modular input configuration for scintillators or Beryllium filter integration allow ease of integration into laboratory setup or integrator (OEM) systems. Rapid frame rates - 100 fps full frame sustained Fiber optic plate coupling - Direct bonding on sCMOS sensor for maximum throughput. EMA statistical structure for lowest channel crosstalk 5.5 megapixel sensor format with high resolution and 6.5 μm pixels - Large 16.6 x 14 mm field of view 1.2 e- read noise - Lower detection limit than any CCD Compact and light - Ideal for integration into space restrictive set-ups Rolling and Global shutter - Maximum flexibility across all application Dual-Gain amplifiers - Extensive dynamic range of 25,000:1 @ 30 fps ROI and pixel binning - User-defined ROI (1 pixel granularity) and hardware binning
