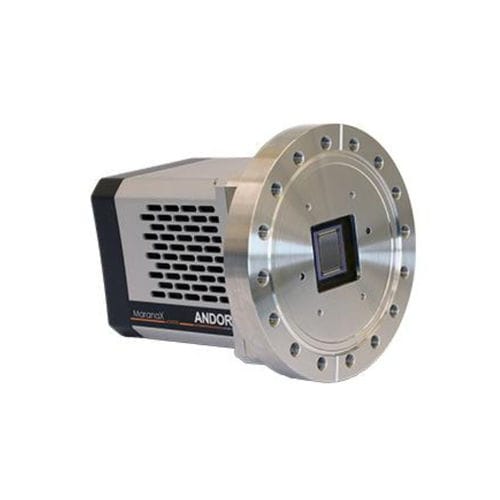

X-ray camera Marana-X 4.2B-6
detectiondigitallaboratory

X-ray camera
X-ray camera
Add to favorites
Compare this product


Characteristics

Function
detection
Technology
digital
Applications
for scientific applications, laboratory
Spectrum
X-ray, hyperspectral, neutron
Sensor
sCMOS
Interface
USB 3.0, CoaXPress
Other characteristics
high-speed, high dynamic range, low-noise, cooled
Number of pixels

4,200,000 unit

Description

Cameras for X-Ray, EUV, Electron and Neutron Detection Andor’s portfolio of CCD, sCMOS and EMCCD cameras provide a wide range of high sensitivity, high dynamic range and fast detection solutions for table-top laboratory and beamline experiments. These detectors benefit especially applications in the field of EUV, X-ray, neutron or electron detection for material science, plasma studies, bio-samples analysis or beam/source characterisation. NEW Marana-X – High Speed, Direct X-ray Detection Back-illuminated sCMOS • 4.2 Megapixels, 6.5 µm pixel size, 74 fps (full array) • 95% QE and low noise vacuum cooled • Ideal for X-ray water window tomographic and in-situ imaging & EUV spectroscopy X-Ray, Electron & Neutron Detection cameras adapted to your needs Andor offers a comprehensive portfolio of open fronted direct X-ray detection cameras (SO), also available with Berylium windows (SY) in stand alone formats with Andor’s patented UltraVac™ technology. Andor also offers high throughput fibreoptic and lens coupled indirect detection solutions to meet every need. Key Specifications • High Resolution: 4.2 Megapixel • High Sensitivity: Up to 99% QE • Fast Speeds: Up to 74 fps • High Dynamic Range: Up to 16-bit • EMP Resistant: CoaXPress data interface • Deep Cooled: -45°C cooling • No mechanical shutter required Key Applications • ln situ Radiography • Tomography • Spectroscopy • Hyperspectral Imaging • HHG Source Characterisation • EUV Ptychography • EUV Lithography
