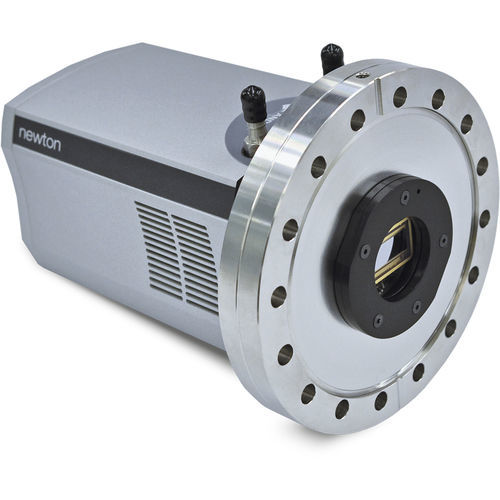

HDR camera Newton SO

machine visionsurveillancedetection

Andor’s Newton SO series features high-QE sensors for direct detection of soft X-Ray, EUV or VUV photons. A convenient 16-point, knife-edge sealed 6” rotatable CF152 flange provides a robust and highly-effective seal to any compatible vacuum chamber interface. • Open front end • Multi-Megahertz readout • TE cooling to -100°C • Down to 13.5 x 13.5 μm pixel size • Crop mode operation Andor’s Newton series offers outstanding sensitivity performance through a combination of > 95% QE back-illuminated sensors, low noise readout electronics and industry-leading, maintenance-free deep TE-cooling down to -100°C. It features a 1024 x 255 (26 µm pixel) and a 2048 x 512 (13.5 µm pixel) matrix options optimised for high dynamic range & high speed and high spatial resolution Spectroscopy in the VUV and soft x-ray range. A convenient 16-point, knife-edge sealed 6” rotatable CF-152 flange provides a robust and highly-effective seal to any compatible vacuum chamber interface. The Newton SO platform also offers a USB2 interface and Labview or EPICS compatibility for seamless integration into complex setups. USB 2.0 interface - Built-in robust plug and play interface as standard. Enhanced baseline clamp - Slower readout for lowest noise, faster speeds for more rapid readout and focusing Software Development Kit (SDK) - Ease of control integration into complex setups: Matlab, Labview, Visual Basic, C/C++ or Linux. Integrated in EPICS - Seamless integration and operation at EPICS-based particle accelerators. Filter and filter holders options - Accommodate beryllium (or aluminium) windows with thickness down to 200 µm for removal of unwanted lower energy radiations
