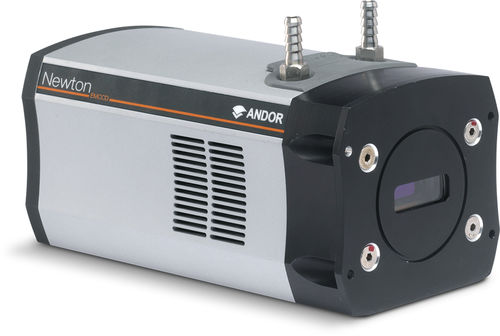

Spectroscopy camera Newton 971

surveillancefull-colorEMCCD

The most sensitive EMCCD spectroscopic detector ever offers you active pixels of 1600 x 400 along with 16 x 16 µm pixel size along with the -100°C TE cooling. It’s variable readout rates enable data readout at up to 3 Megahertz, through the plug and play USB interface. • EM sensor • Multi-Megahertz Readout • TE cooling to -100°C • UltraVac™ • 16 x 16 μm pixel size EM technology enables charge from each pixel to be multiplied on the sensor before readout, providing single photon sensitivity. The Newton EM platform combines a 1600 x 200 (or 1600 x 400) array of 16 µm pixels, thermoelectric cooling down to -100°C for negligible dark current, 3MHz readout and USB 2.0 plug-and-play connectivity to provide unrivalled performance for spectroscopic applications. The dual output amplifiers allow software selection between either a conventional High Sensitivity or Electron Multiplying outputs to suit a broad range of photon regime conditions. This makes the Newton EMCCD the ideal choice for ultrafast chemical mapping applications e.g. SERS, TERS or luminescence mapping.
