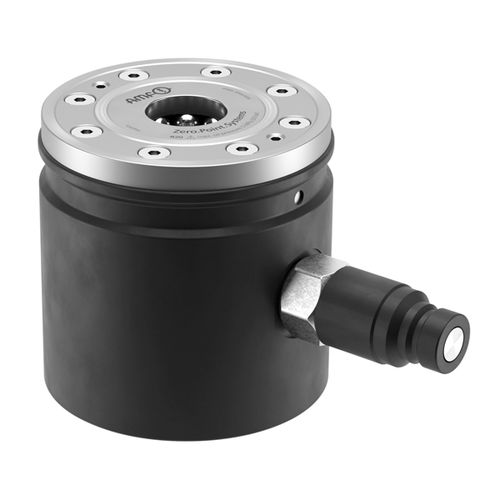

Tightening hydraulic adapter 6210H series

flange

The adapter element is used to reduce the intermediate element size K10 to the hydraulic clamping module K5. Workpieces or fixtures can be clamped with repeat accuracy directly onto the hydraulic clamping module K5 via clamping nipples. This clamping system can be used to move workpieces to the required machining height in the machine for 5-sided machining, or for the safe and quick clamping of workpieces with ledges and different clamping heights on the machine table. Note: Order no. for the centering sleeve Ø 16 mm: 78006 The hydr. quick-release coupling, connector version, and the fastening screws are supplied as standard. Simple, quick and flexible clamping of complex workpiece contours on the machine table. Especially suitable for levelling workpieces or clamping fixtures at the necessary machine heights in the machine tool and for the reliable clamping of same.
