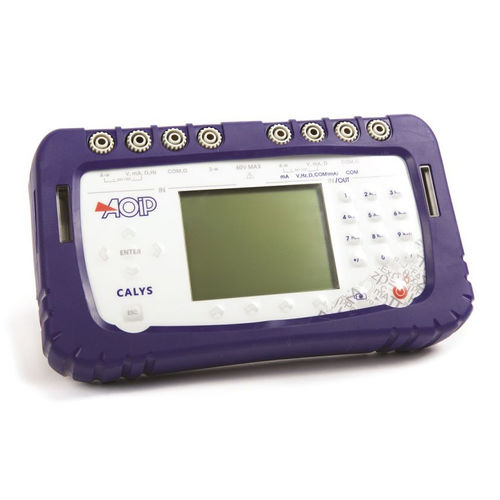

Multifunction calibrator CALYS 100

temperaturepressurevoltage

CALYS 100 is a field precision documenting multifunction calibrator within CALYS range. It is the perfect tool for advanced process maintenance and use on test bench in all industries. Suitable for all field and lab measurements, it can simultaneously measure and generate over two isolated channels various signals of temperature, resistance, process, pressure and frequency in one single instrument. Providing extended functionalities (temperature simulation, scaling, steps, synthesizer, statistical functions…), CALYS 100 makes advanced data exploitation and full data traceability easier, as well as quick access to functions by menus. The instrument simultaneously measures and simulates: - Temperature: Up to 0,012% RDG - Resistance: Up to 0,010% RDG, 4 KΩ range - Current: Up to 0,012% RDG, 50 mA range + 24 V loop supply - Voltage: Up to 0,010% RDG, 50 V range - Frequency: Up to 0,005% RDG, 20 KHz range (10 KHz in simulation) - Pressure: When used with an external pressure module (ref. ACL433), CALYS 100 can measure and simulate pressure (comparison calibration with a pressure pump).
