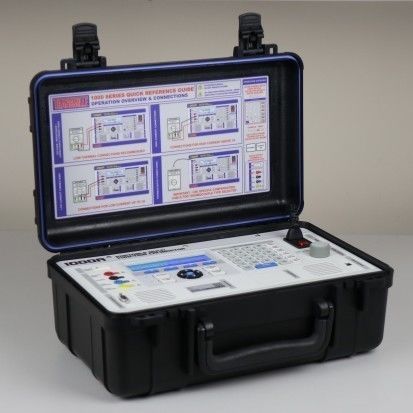

Current calibrator 1000A

temperaturevoltageresistance

Key features

• Ultra-portable calibrator with advanced functions
• AC/DC voltage output up to 1000 V
• AC/DC current up to 10 A (up to 500 A with EA002 coil)
• Resistance source up to 100 MΩ
• Thermocouple simulation with wide type compatibility
• Full compatibility with ProCal software

Detailed description
The Series 1000 combines bench-calibrator performance with on-site portability. Designed for field calibration, it operates reliably in demanding environments while remaining compact and lightweight (9.2 kg). The IP67-rated rugged enclosure provides dust and water protection for enhanced durability. Built-in outputs allow calibration of a broad range of instruments without external accessories, and ProCal software support simplifies laboratory integration and calibration workflows.

Specifications (summary)
The following lines summarize ranges and best total accuracy over 1 year:
DC VOLTAGE: 0 - ±1000 V (±80 ppm)
DC CURRENT: 0 - ±10 A (best total accuracy over 1 year ±0.05%)
AC VOLTAGE: 0 - ±1000 V (best total accuracy over 1 year ±0.08%)
AC CURRENT: 0 - ±10 A (best total accuracy over 1 year ±0.1%)
RESISTANCE (PASSIVE): 0 - 100 MΩ (best total accuracy over 1 year ±0.02%)
CAPACITANCE: 1 nF - 10 µF (best total accuracy over 1 year 0.8%)
FREQUENCY: 1 Hz - 100 MHz (best total accuracy over 1 year 20 ppm)
TEMPERATURE (THERMOCOUPLE): J / K / T / R / S / B / U / N / E / L / C (10 µV/°C) (best total accuracy over 1 year ±0.22°C)
WEIGHT: 9.2 kg
DIMENSIONS: H 257 mm x W 432 mm x D 180 mm
OPTION: insulation test up to 1000 V to 1 GΩ

Technical characteristics / specifications

• Series: 1000 (model 1000A)
• Brand: Transmille
• Weight: 9.2 kg
• Dimensions: Height 257 mm x Width 432 mm x Depth 180 mm
• IP67 rugged enclosure for harsh environments
• Warm-up time: < 20 minutes
• Outputs: up to 1000 V and 10 A (500 A with EA002 coil)
• Ranges and accuracies summary: DC V 0–±1000 V (±80 ppm / 1 year), DC I 0–±10 A (±0.05% / 1 year), AC V 0–±1000 V (±0.08% / 1 year), AC I 0–±10 A (±0.1% / 1 year), R 0–100 MΩ (±0.02% / 1 year)
• Capacitance: 1 nF – 10 µF (0.8% / 1 year)
• Frequency: 1 Hz – 100 MHz (20 ppm / 1 year)
• Temperature (thermocouples): types J, K, T, R, S, B, U, N, E, L, C — 10 µV/°C, accuracy ±0.22°C (1 year)
• Option: insulation test at 1000 V up to 1 GΩ
• Software compatibility: ProCal
