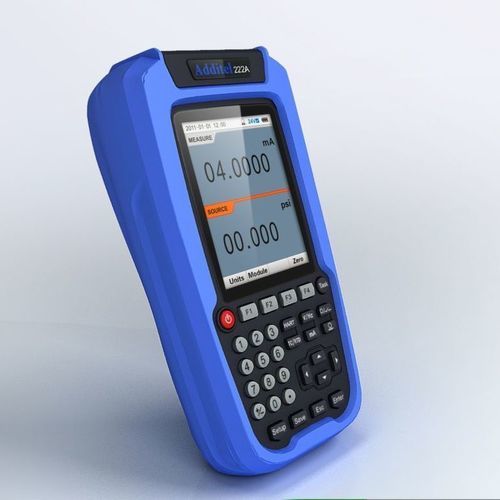

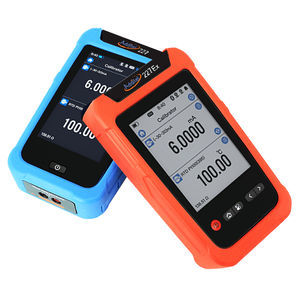

Multifunction calibrator ADT 222

for mA signalscurrentpressure

Overview
Ultra-compact and easy to operate via a smartphone-style interface, the ADT 222 is a documented multifunction calibrator for sourcing, simulating and measuring pressure, temperature and electrical signals. Data logging of planned and completed calibrations makes it suitable for turnkey calibration workflows.

Functions

• Source, simulate and measure: mV, mA, Ohms, RTD, thermocouples, frequency and pulses.
• Simulates and measures 13 types of thermocouples and 11 RTDs for transmitter and recorder calibration.
• Measures and sources pressure using PM160 digital pressure modules (range -1 bar to 700 bar).
• 24 V loop power supply.
• Simultaneous read/output capability.
• Automatic switch testing.
• Square-wave signals.
• Pulse and frequency generation for calibrating counters and totalizers.

Cold-junction compensation

• Internal equivalence block for thermocouple cold-junction compensation.
• Resistive sensing element with flexible lead installed in the equivalence block; removable for user ice-point calibration.

Display and interface

• 3.5" color TFT display.
• Multilingual interface: English, German, French, Italian, Spanish, Portuguese, Simplified Chinese.

Document management and automation

• Management of information for the device under test.
• Setup of automated calibration procedures: test execution, error calculation, display and storage of results, indication of out-of-tolerance points.
• As-found / As-left functions for recording and documenting results.
• Download of tasks and results.
• "Snapshots" function to capture and save work.

Ruggedness and protection

• Robust design suited to harsh environments; passed a 1 m drop test.
• Protection against misuse: tolerates up to 30 V on connectors and up to 1 A on power sockets without damage; automatically recovers when voltage/current is removed.

Battery

• Rechargeable Li‑ion battery providing up to 15 hours of continuous use (reduced autonomy when 24 V function is used).
• User-replaceable battery.

Included accessories

• 110 V/220 V AC adapter.
• Rechargeable Li‑ion battery (included).
• Test leads (2 sets, 4 pieces).
• Shorting cable (set of 2).
• User manual.
• NIST-traceable calibration certificate.

Note
The PM160 range of digital pressure modules enables absolute, gauge and vacuum pressure measurements from -1 bar to 700 bar with a typical stated accuracy of 0.025% full scale, including 1-year stability and calibration uncertainty.

Specifications / Technical data

• Electrical measurements (read): DC Voltage ±75.0000 mV / ±30.0000 V, resolution 0.11 µV / 0.1 mV, accuracy 0.01% FS + 3.75 µV / 0.01% FS + 1.5 mV.
• DC Current: ±30.0000 mA, resolution 0.1 µA, accuracy 0.01% FS + 1.5 µA.
• Resistance (measure): up to 400 000 Ω, resolution 1 mΩ (2/3/4-wire), accuracy up to 0.01% FS + 0.02 Ω depending on mode.
• Frequency: 1 to 50 000.0 Hz, resolution 0.1 Hz, accuracy 0.005% FS + 1 Hz.
• Pulse: 0 to 999 999, resolution 1.
• Switch limit: switch voltage +3 V to +24 V.
• Source accuracy: DC Voltage source -10.000 to 75.000 mV / 0 to 12.0000 V, resolution 1 μV / 0.1 mV, typ. accuracy 0.02% FS + 4.25 µV / 0.02% FS + 0.6 mV. DC Current source 0 to 22.000 mA, resolution 1 μA, accuracy 0.02% FS + 1.1 µA.
• Pressure: PM160 digital modules, ranges -1 bar to 700 bar, typical accuracy 0.025% FS (–10°C to 50°C, 1 year stability, calibration uncertainty included).
• Thermocouples: measure and simulate many types (S, R, B, K, N, E, J, T, etc.) with ranges and accuracies per IEC 584 / ASTM / DIN.
• RTD: supports Pt10, Pt100, Pt500, Pt1000, Pt200 (compatibilities and accuracies per IEC 751 and variants).
• Environment: operating temperature -10°C to 50°C; storage -20°C to 60°C; humidity <90% non-condensing.
• Safety: CE marking.
• Connections: Ø4 mm sockets and miniature thermocouple jack; RS232 - DB9 interface.
• Display: 3.5" color TFT.
• Dimensions / Weight: 100 x 192 x 52 mm; 0.7 kg.
• Power / Charging: rechargeable Li‑ion battery (included) or 10 V DC adapter; charge via 220 V mains adapter.
• Battery life: 15 hours (continuous, depends on 24 V usage).
