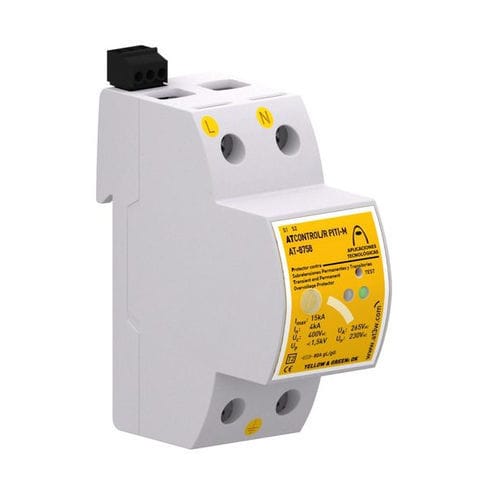

Power supply surge protector ATCONTROL/R P-M
2-polemodularsingle-phase

power supply surge protector
power supply surge protector
Add to favorites
Compare this product


Characteristics

Applications
for power supplies
Other characteristics
2-pole, modular, single-phase, DIN rail
Voltage

230 V, 400 V

Open circuit voltage

275 V, 400 V

Description

ATCONTROL protectors cut off the power supply when they detect a permanent overvoltage or undervoltage, (for example, a fault in the neutral), thus protecting the equipment installed downstream. Self-reclosing protector: when the permanent overvoltage comes to a halt, the protector reconnects the contactor. It has a test button to check that installation has been executed correctly. This protector is self-configurable. It automatically detects the voltage and programmes the permanent overvoltage limits. Certificated tests according to the standard: UNE-EN IEC 61643-11 Relevant standards: UNE 21186, UNE-EN IEC 62305 Products compliant with EC requirements.

Catalogs

Other Aplicaciones Tecnológicas, S.A. products

Permanent Overvoltages
