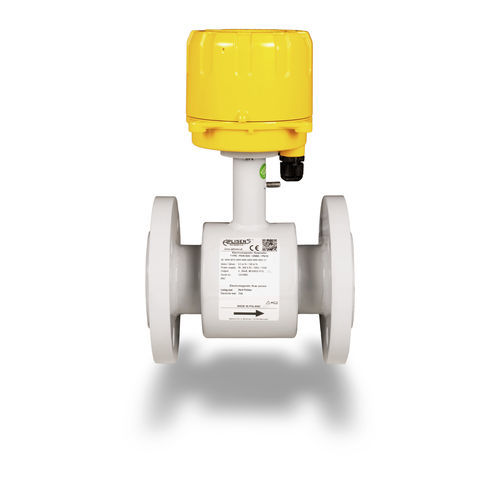

Electromagnetic flow meter PEM-500volumefor liquidsDN50 - 2"
Add to favorites
Compare this product
Characteristics
- Technology
- electromagnetic
- Type
- volume
- Fluid
- for liquids
- Pipe diameter
- DN50 - 2", DN25 - 1", DN275 - 11", DN80 - 3", DN100 - 4", DN15 - 1/2", DN40 - 1"1/2, DN20 - 3/4", DN250 - 10", DN32 - 1"1/4, DN225 - 9", DN175 - 7", DN65 - 2"1/2, DN90 - 3"1/2, DN200 - 8", DN150 - 6", DN125 - 5", DN300 - 12", DN1200 - 48", DN10 - 3/8", DN60 - 2"1/4
- Communication
- 4-20 mA, RS485, with pulse output
- Supply voltage
- 220VAC, 24VDC, 12VDC, 36VDC, 15VDC, 32VDC, 230VAC, 110VAC, 240VAC, 115VAC, 130VAC
- Protection level
- IP68
- Applications
- for water treatment
- Other characteristics
- compact
- Process pressure
1.6 MPa, 2.5 MPa, 4 MPa
- Precision
5 %
Description
Electromagnetic flowmeter type PEM-500 is applicable to the
measurement of flow of the liquids with minimum conductivity of
5ěS/cm. Device measures flow and volume of liquids in both
directions of flow. For correct measurement pipe of sensor has to
be fully filled by liquid.
Sensor doesn’t have any mechanical parts inside flow tube which
ensure undisturbed flow of medium. Flowmeter is able to
measure flow of medium like pure liquids but also pastes and
chemically aggressive liquids.
