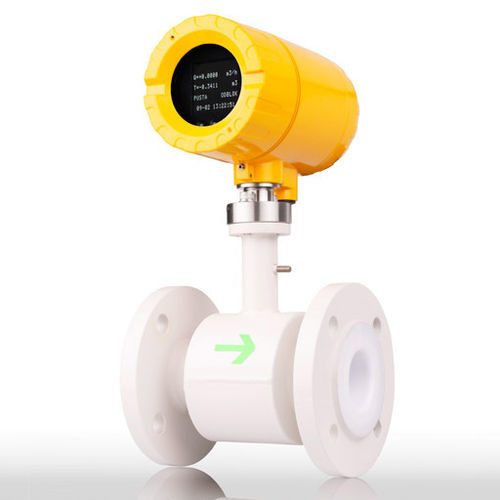

Electromagnetic flow meter PEM-1000volumefor waterDN10 - 3/8"
Add to favorites
Compare this product
Characteristics
- Technology
- electromagnetic
- Type
- volume
- Fluid
- for water
- Pipe diameter
- DN15 - 1/2", DN50 - 2", DN200 - 8", DN25 - 1", DN100 - 4", DN80 - 3", DN40 - 1"1/2, DN10 - 3/8", DN20 - 3/4", DN32 - 1"1/4, DN250 - 10", DN65 - 2"1/2, DN125 - 5", DN150 - 6", DN300 - 12"
- Installation
- in-line
- Communication
- analog output
- Volumetric flow rate
Max.: 28,274 m³/h
(998,486.8869 ft³/h)Min.: 0.1 m³/h
(3.5315 ft³/h)- Process temperature
Max.: 90 °C
(194 °F)Min.: -5 °C
(23 °F)- Process pressure
Max.: 40 bar
(580.15 psi)Min.: 0 bar
(0 psi)- Precision
0.2 %, 0.5 %
Description

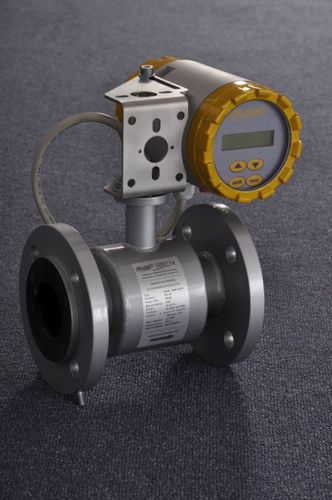

The PEM-1000 Series, manufactured by Aplisens, is an electromagnetic flow meter equipped with a robust and resistant cover of sensor. It has a nominal size of DN 10 up to DN 1000, maximum static pressure of 40 bar and maximum analog output 20 mA. This is used in applications involving acids, waste water, paints and paste.
