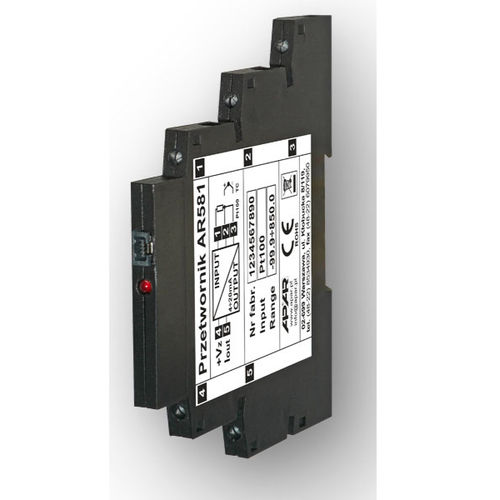

DIN rail mount temperature transmitter AR581

type S thermocoupletype K thermocouplePt100

• linear processing of the measured temperature into a current signal • input (programmable): • input type, processing range and other processing parameters configured with AR950, AR956 programmer or AR956 programming set or by the manufacturer according to customer specifications • processing ranges: any in the input measuring range • signalling the exceeded processing range or sensor error: - optical: red LED - output: 3.8 or 21 mA • narrow housing for mounting on TS35 strip: 6.2x76.9x99.1mm • high accuracy and immunity to interference • no galvanic separation input / output • response time (10÷90%): 900ms, programmable in the range of 350÷1600ms • power supply: 10 ÷ 36 Vdc • operating temperature range: 0 ÷ 65 °C • relative humidity range: 0 ÷ 90 % (no condensation) • ingress protection rating: IP20 • weight: 20 g
