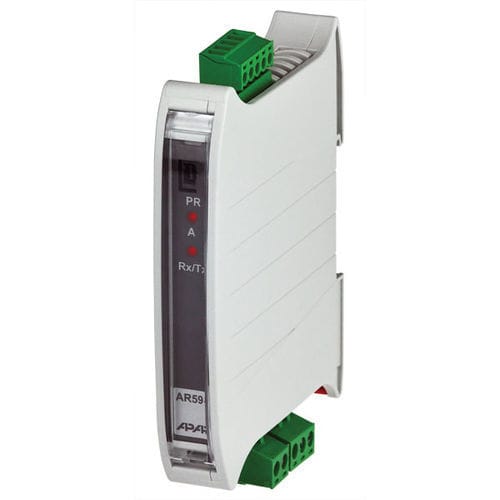

DIN rail mount temperature transmitter AR594

RTDthermocouple2-wire

• processing of the measured temperature or other measure into a digital signal • input (programmable): • resistance: 0÷2500 Ω • digital serial interface (RS232 or RS485, MODBUS-RTU, SLAVE) • programmable alarm for exceeded setpoints with hysteresis • input type and other configuration parameters are programmed via the serial interface using the user application or ARsoft-CFG software • LED signalling the exceeded processing range, sensor error or alarm output status (on-off type): • triple galvanic separation (input / output / power): 1.5 kV, 50 Hz, 1 min • housing for mounting on 35 mm DIN rail • high accuracy and immunity to interference • input response time: 270ms (standard), programmable in the range of 134÷1500ms • digital output: RS485 or RS232 • signalling the duration of transmission: red LED • alarm output: 12V, binary O.C. type, current limiting resistance of 400Ω • power supply: 24Vac/dc (18÷50 Vdc, 13÷35 Vac), • operating temperature range: 0 ÷ 65 °C • relative humidity range: 0 ÷ 90 % (no condensation) • ingress protection rating: IP20
