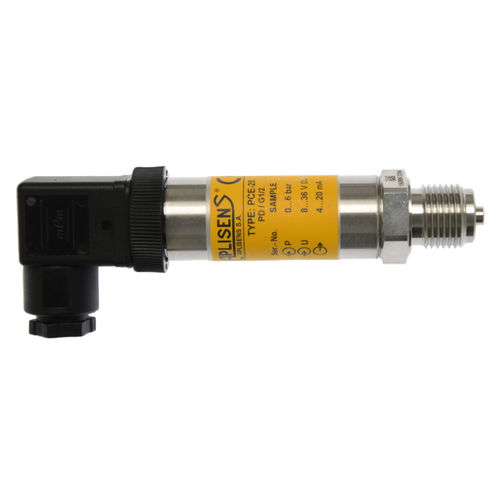

Relative pressure transmitter PCE-28
membrane4-20 mA0-10 V

Relative pressure transmitter - PCE-28 - APLISENS S.A. - membrane / 4-20 mA / 0-10 V
Relative pressure transmitter - PCE-28 - APLISENS S.A. - membrane / 4-20 mA / 0-10 V
Relative pressure transmitter - PCE-28 - APLISENS S.A. - membrane / 4-20 mA / 0-10 V - image - 2
Relative pressure transmitter - PCE-28 - APLISENS S.A. - membrane / 4-20 mA / 0-10 V - image - 3
Relative pressure transmitter - PCE-28 - APLISENS S.A. - membrane / 4-20 mA / 0-10 V - image - 4
Relative pressure transmitter - PCE-28 - APLISENS S.A. - membrane / 4-20 mA / 0-10 V - image - 5
Relative pressure transmitter - PCE-28 - APLISENS S.A. - membrane / 4-20 mA / 0-10 V - image - 6
Relative pressure transmitter - PCE-28 - APLISENS S.A. - membrane / 4-20 mA / 0-10 V - image - 7
Relative pressure transmitter - PCE-28 - APLISENS S.A. - membrane / 4-20 mA / 0-10 V - image - 8
Relative pressure transmitter - PCE-28 - APLISENS S.A. - membrane / 4-20 mA / 0-10 V - image - 9
Relative pressure transmitter - PCE-28 - APLISENS S.A. - membrane / 4-20 mA / 0-10 V - image - 10
Relative pressure transmitter - PCE-28 - APLISENS S.A. - membrane / 4-20 mA / 0-10 V - image - 11
Relative pressure transmitter - PCE-28 - APLISENS S.A. - membrane / 4-20 mA / 0-10 V - image - 12
Relative pressure transmitter - PCE-28 - APLISENS S.A. - membrane / 4-20 mA / 0-10 V - image - 13
Relative pressure transmitter - PCE-28 - APLISENS S.A. - membrane / 4-20 mA / 0-10 V - image - 14
Add to favorites
Compare this product
Go to the APLISENS S.A. website for more information

Characteristics

Pressure type
relative
Technology
membrane
Output
4-20 mA, 0-10 V, HART, 2-wire
Process connection
G 1/2, G 1/4, NPT 1/4, M20 x 1,5, G 1
Protection level
ATEX, SIL, IP65, IP67, IP68, IP66, IECEx
Pressure range

Max.: 1,000 bar
(14,503.77 psi)

Min.: 0 bar
(0 psi)

Precision

0.16 %, 0.2 %, 0.3 %, 0.6 %

Long-term stability

0.1 %, 0.2 %, 0.6 %

Process temperature

Max.: 120 °C
(248 °F)

Min.: -40 °C
(-40 °F)

Description

The PCE-28 Smart Pressure Transmitter, manufactured by Aplisens®, features a 4...20m A output signal with HART protocol. Furthermore, this pressure transmitter, certified with marine certifcate DNV, complies with the ATEX Intrinsic safety standards for optimum security. Marine certificate – DNV, BV Communication protocol Modbus RTU Version with local display
