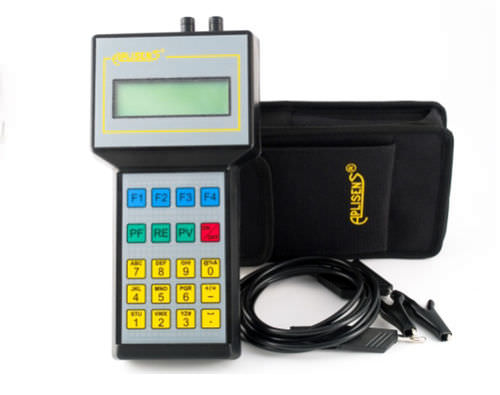

Field controller KAP-03, KAP-03Ex

The KAP-03 (KAP-03Ex) HART field communicator is a portable battery supplied device used for communication and exchange of data with smart transmitters e. g. pressure, differential pressure, temperature transmitters. It features an output built as a standard current loop 4-20 mA. using FSK modulation type BEL 202 with an implemented HART communication protocol revision 5 and revision 6. The communicator is specially designed to configure smart transmitters manufactured by APLISENS. __ The communication with the transmitters enables: - Identification of a transmitter, - Configuration of its output parameters: Units and values of the beginning and the end of its measurement range. Ballistic factor. Conversion characteristics (linear, radical, special, quadratic), - Reading of a PV values (e.g. pressure, output current, degree of output setting in %), - Enforcement of output current with a given value, - Transmitter calibration as regards master pressure,. - Zeroing
