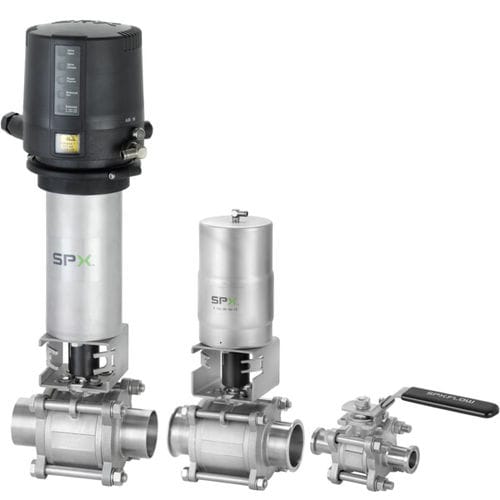

Ball valve BLV1 series
pneumatically-operatedcontrolshut-off

ball valve
ball valve
ball valve
ball valve
ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
pneumatically-operated
Function
control, shut-off
Media
for water, for oil, for liquid food products and beverages, for fuel, for steam
Body
stainless steel, PTFE
Applications
hygienic
Other characteristics
ISO, standard
Temperature

160 °C (320 °F)

Max.: 140 °C (284 °F)

Min.: 0 °C (32 °F)

Pressure

10 bar (145 psi)

DN

Max.: 100 mm (3.937 in)

Min.: 15 mm (0.591 in)

Description

BLV1 Series - Ball Valves Product Type: VALVES / BALL VALVES Ball valves offer great economy and durability for a wide range of applications that do not require completely hygienic, cleanable-in-place (CIP) service. They are easy to install and maintain. All stainless steel construction: forged body and ball FDA approved materials including reinforced PTFE seats Cavity filled to minimize residue build-up around ball and seat Full port opening for unrestricted flow in the open position High temperature and pressure ratings for demanding service applications Maintenance-free pneumatic actuator with “Normally Closed”, “Normally Open” or “Double Acting” orientations Standard ISO pattern mounting pad for easy retrofit from manual handle to pneumatic actuator Three piece design with floating seals Lockable manual handle option for added security Available with the identical control unit options offered on other valve types to give common look, controls interface, and spare parts across a multi-valve system Ball valves operate by opening to allow flow or closing to shut-off flow within a pipeline by way of a fitted ball inside the valve body with PTFE seats. Through the floating position of the ball, in closed position a movement into the flow direction becomes possible providing for optimum sealing in the passage (2 and 3). There are three ball valve designs: Standard - with handle without feedback - ball movement performed manually with handle With handle and bracket for feedback - ball movement performed manually with handle Controlled by pneumatic actuator - actuate ball movement with air connection at (1) and reset by spring force
