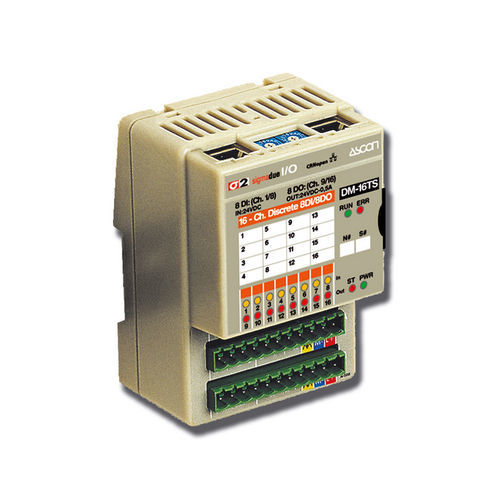

Digital I/O module DM-16TSCANopen16-I/O8-O
Add to favorites
Compare this product
Characteristics
- Signal type
- digital
- Interface
- CANopen
- Number of inputs/outputs
- 16-I/O, 8-O, 8-I
- Applications
- automation
- Mounting
- DIN rail
- Other characteristics
- compact, with optocoupler
Description
Overview
DIN-rail CANopen I/O module with 8 digital inputs and 8 digital outputs for machine and process integration.
Key features
Special functions
Applications
Documentation
Technical specifications
DIN-rail CANopen I/O module with 8 digital inputs and 8 digital outputs for machine and process integration.
Key features
- 8 digital inputs, 24 Vdc
- 8 digital outputs, 24 Vdc, 0.5 A, optically isolated
- CANopen interface for fieldbus communication
- Compact single-module form factor (76 x 110 mm)
Special functions
- Inputs: rising-edge detection and hardware interrupt
- Outputs: programmable pulse generation with variable length
Applications
- Cryogenic plants and industrial automation
Documentation
- Installation manual (EN)
- User manual (EN)
- Datasheet (EN)
- Commercial and technical bulletins (EN)
- CE conformity documentation (multilingual)
Technical specifications
- Model: DM-16TS
- Interface: CANopen
- Mounting: DIN-rail
- Dimensions: single module 76 x 110 mm
- Power supply: 24 Vdc
- Input channels: 8 (24 Vdc)
- Output channels: 8 (24 Vdc, 0.5 A, optically isolated)
- Special functions: pulse generation; rising-edge detection and interrupt
- Certifications: CE, UL (listed)
