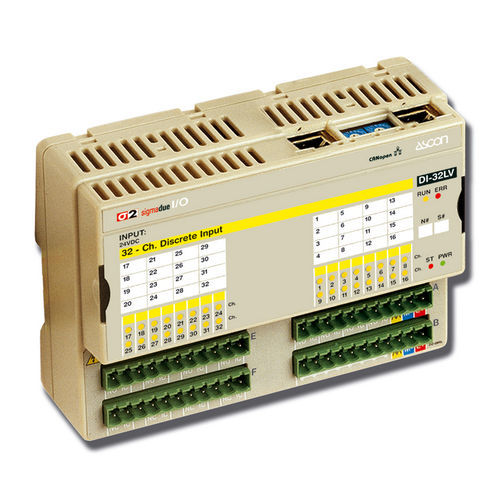

Digital I/O module DI-32LV

CANopen32 digital inputsDIN rail

Overview
CANopen I/O module with 32 optically isolated digital inputs. Connectable to a CANopen network and mountable on a DIN rail.

Inputs

• 32 optically isolated digital inputs
  • UL (state 0): -3 … +5 Vdc
  • UT (transition): 5 … 11 Vdc
  • UH (state 1): 11 … 30 Vdc

Additional information
Dimensions: Double module 152 x 110 mm
Power supply: 24 Vdc
Special functions: Rising edge detection and interrupt
Input channels: 32
Input channel type: 24 Vdc
Protocol: CANopen
Certifications: CE, UL (listed)

Characteristics / technical specifications

• Model: DI-32LV
• Protocol: CANopen
• Mounting: DIN rail
• Number of inputs: 32 optically isolated digital inputs
• Input thresholds: UL (state 0) -3 … +5 Vdc; UT (transition) 5 … 11 Vdc; UH (state 1) 11 … 30 Vdc
• Input channel type: 24 Vdc
• Power supply: 24 Vdc
• Dimensions: Double module 152 x 110 mm
• Special functions: Rising edge detection and interrupt
• Certifications: CE, UL (listed)
