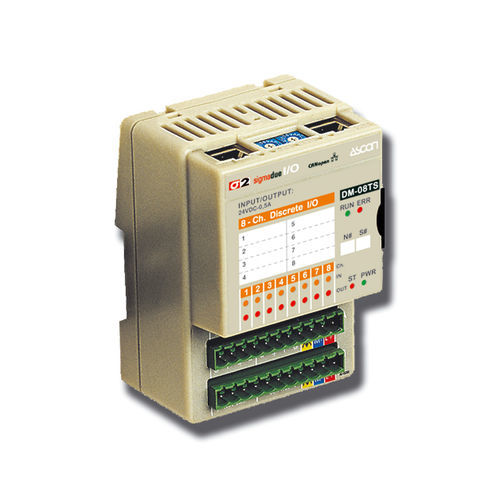

Digital I/O module DM-08TS

CANopenModbus8-I/O

Overview
Connectable to CANopen and Modbus networks, the DM-08TS is a DIN-rail mountable digital I/O module with 8 individually configurable channels (input or output) at 24 Vdc; outputs are opto-isolated, up to 0.5 A per channel.

Key features

• 8 digital channels configurable as inputs or outputs (24 Vdc), opto-isolated, 0.5 A max per channel
• Connectivity: CANopen and Modbus
• Mounting: DIN-rail
• Special input functions: status, reverse, latch input, pulse counting*, frequency reading*
• Special output functions: pulse generation of variable length, PWM generator*

Note
Functions marked with * are limited to a maximum of 2 channels.

Applications

• Cryogenic plants

Technical data

• Model: DM-08TS
• Channels: 8 digital configurable as input or output
• Input/output voltage: 24 Vdc
• Output current per channel: up to 0.5 A (opto-isolated)
• Mounting: DIN-rail
• Dimensions: Single module 76 x 110 mm
• Protocols: CANopen, Modbus
• Certifications: CE, UL (listed)
