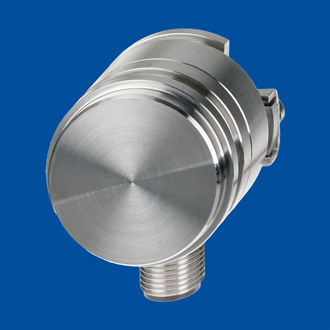

Absolute angle encoder posirot® PRAS2EX
magneticnon-contactvoltage output

absolute angle encoder
absolute angle encoder
absolute angle encoder
Add to favorites
Compare this product

Go to the ASM Automation Sensorik Messtechnik GmbH website for more information

Characteristics

Type
absolute
Technology
magnetic
Construction
non-contact
Output signal
voltage output, current output
Material
stainless steel
Protection level
explosion-proof, IP65
Housing diameter

36 mm
(1.42 in)

Resolution

Max.: 0.1 mm
(0 in)

Min.: 0.03 mm
(0 in)

Process temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

Dust-Ex proof angle sensor 0 to 360° in a 36 mm diameter flat housing Contactless with external position magnet Protection class IP65 Specifications Output - Voltage 0.5 … 10 V, 0.5 … 4.5 V Current 4 ... 20 mA, 3 wire Measurement range - 0 ... 15° to 0 ... 360° (selectable in 15° increments) Resolution - 0.03 % (60 ... 360°), 0.1 % (15 ... 45°) Linearity - ±0.3 % f.s. (typical) Housing material - Stainless steel EN 1.4404 (AISI 316L) Protection class - IP65 Dust-Ex-proof: II 3D Ex tc IIIC T80°C Dc X Connection - Connector M12, 5 pin Weight (without cable) - Approx. 140 g
