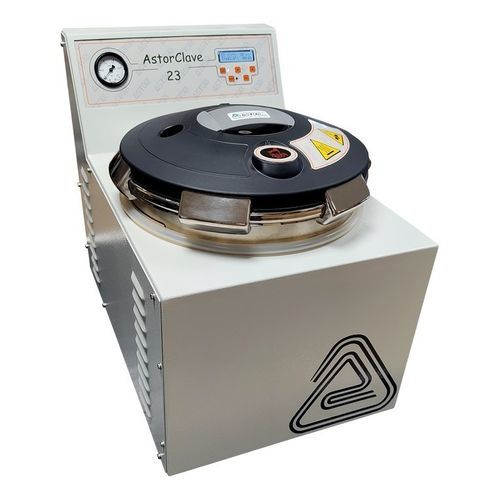

Laboratory autoclave AstorClave 23

top-loadingsemi-automaticvertical

Overview
The AstorClave 23 semiautomatic autoclave is designed for reliable sterilization of small laboratory and medical items such as culture media, glassware and contaminated samples. The vertical stainless-steel chamber has a 23 L capacity for batch processing of small loads. Safety and process control features (water lack sensor, manometer, automatic safety valve and automatic steam release) simplify operation and reduce downtime between cycles. Optional accessories increase handling convenience and traceability.

Compliance
Suitable for sterilization cycles at 121°C and 1 atm in accordance with the 97/23/CE European Directive.

Technical characteristics:

• External anti-acid painted steel structure
• Backlit LCD display for program control and monitoring
• Vertical sterilization chamber in stainless steel, 23 L capacity
• Stainless steel lid with mechanical safety closure
• Manometer for monitoring chamber pressure
• Automatic safety valve
• Automatic steam release at end of cycle to shorten turnaround
• External drain cock for emptying residual chamber water
• Safety adhesive on lid indicating high temperature during cycle
• Water lack sensor in chamber with manual reset
• Customizable sterilization time settings
• Back-lit ON/OFF switch and warning LEDs for heating resistor and water lack
• Perforated stainless steel basket (optional) with handle, 30 x 24 cm (dxh)
• Data output for optional thermal printer
• Dimensions: external 365 x 630 x 470 (h) mm; internal chamber 320 x 320 mm (dxh)
• Weight: 24 kg
• Power supply: 220 V, 50/60 Hz, 2,100 W
• Made in full conformity with the 97/23/CE European Directive

Product data

• Code no. 67523 - AstorClave 23, 23-liter semiautomatic autoclave, without basket

Accessories

• Code no. CES67523 - Perforated stainless steel basket with handle, 30 x 24 cm (dxh)
• Code no. EP-50 - EP-50 thermal printer
• Various codes - Thermal paper roll for EP-50, data-loggers, sterilization adhesive tape, bags, etc.

Technical specifications

• Model: AstorClave 23
• Chamber material: Stainless steel
• Chamber capacity: 23 L
• Chamber internal dimensions: 320 x 320 mm (dxh)
• External dimensions: 365 x 630 x 470 mm (h)
• Optional basket: Perforated stainless steel 30 x 24 cm (dxh)
• Weight: 24 kg
• Power: 2,100 W
• Supply voltage/frequency: 220 V, 50/60 Hz
• Sterilization cycle: 121°C at 1 atm
• Controls: Backlit LCD display; customizable sterilization time
• Safety features: Mechanical lid closure, manometer, automatic safety valve, water lack sensor with manual reset, safety lid adhesive, warning LEDs
• Optional: Data output for thermal printer
