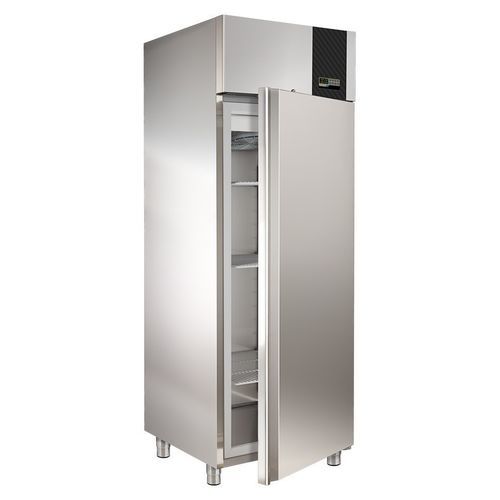

Laboratory refrigerator-freezer FRT 70

for pharmaceutical applicationscorrosion-resistant

Product overview
A new line of laboratory instruments offering precise temperature control and uniformity. The Astori Tecnica FRT/FR/T/CG series includes refrigerated thermostats, incubators, refrigerators and freezers with capacities from 600 to 1,400 L for bacteriological analyses, shelf-life and germination studies, and storage of pharmaceutical products.

Technical features

• Digital, fully adjustable thermal regulator
• Internal and external structure in AISI 304 stainless steel
• Heating unit with tangential laminar flow ventilation (FRT and T)
• Refrigeration with central fan for ventilated cooling (FRT, FR, CG)
• Excellent temperature uniformity throughout the chamber
• 75 mm thick thermal insulation
• Refrigerant: R290 (CFC-free)
• Tray supports at multiple heights; supplied with stainless steel grilled trays
• Reversible doors
• Adjustable stainless steel legs (10–15 cm)
• Internal light
• Key lock standard
• Internal chamber with rounded radial corners for easy cleaning and sanitization
• Optional accessories: glass door, temperature recorder, internal plug, safety alarm, others on request
• Detailed stability and performance data available in technical charts

Available models and detailed technical characteristics

REFRIGERATED THERMOSTATS (FRT series)
Model | Temperature range (°C) | Capacity (L) | Temperature stability (°C) | Trays | Internal light | Insulation thickness | Ventilated refrigeration | Refrigerating gas | Automatic defrosting | Evaporation condensate | Building material | Inox adjustable feet | Reversible door | Glass door | Temperature recorder | Safety device with alarm | Key lock | Dimensions (w x d x h, mm) | Weight (Kg) | Power (W)
FRT 70 | 0 / 37 | 700 | ± 2.5 | 3 | YES | 75 mm | YES | R290 (CFC-free) | YES | Automatic | AISI 304 | 10–15 cm | YES | Optional | Optional | Optional | YES | 740 x 815 x 1985 | 126 | 1000
FRT 120 | 0 / 37 | 1200 | ± 2.5 | 6 | YES | 75 mm | YES | R290 (CFC-free) | YES | Automatic | AISI 304 | 10–15 cm | YES | Optional | Optional | Optional | YES | 1260 x 715 x 1985 | 186 | 2000
FRT 140 | 0 / 37 | 1400 | ± 2.5 | 6 | YES | 75 mm | YES | R290 (CFC-free) | YES | Automatic | AISI 304 | 10–15 cm | YES | Optional | Optional | Optional | YES | 1480 x 815 x 1985 | 196 | 2000

INCUBATORS (T series)
Model | Temperature range (°C) | Capacity (L) | Temperature stability (°C) | Trays | Internal light | Insulation thickness | Building material | Inox adjustable feet | Reversible door | Glass door | Temperature recorder | Safety device with alarm | Key lock | Dimensions (w x d x h, mm) | Weight (Kg) | Power (W)
T 60 | Amb. / 60 | 600 | ± 0.2 | 3 | YES | 75 mm | AISI 304 | 10–15 cm | YES | Optional | Optional | Optional | YES | 740 x 715 x 1985 | 116 | 1000
T 70 | Amb. / 60 | 700 | ± 0.2 | 3 | YES | 75 mm | AISI 304 | 10–15 cm | YES | Optional | Optional | Optional | YES | 740 x 815 x 1985 | 126 | 1000
T 120 | Amb. / 60 | 1200 | ± 0.2 | 6 | YES | 75 mm | AISI 304 | 10–15 cm | YES | Optional | Optional | Optional | YES | 1260 x 715 x 1985 | 186 | 2000
T 140 | Amb. / 60 | 1400 | ± 0.2 | 6 | YES | 75 mm | AISI 304 | 10–15 cm | YES | Optional | Optional | Optional | YES | 1480 x 815 x 1985 | 196 | 2000

REFRIGERATORS (FR series)
Model | Temperature range (°C) | Capacity (L) | Temperature stability (°C) | Trays | Internal light | Insulation thickness | Ventilated refrigeration | Refrigerating gas | Automatic defrosting | Evaporation condensate | Building material | Inox adjustable feet | Reversible door | Glass door | Temperature recorder | Safety device with alarm | Key lock | Dimensions (w x d x h, mm) | Weight (Kg) | Power (W)
FR 60 | -2 / 8 or 0 / 8 | 600 | ± 2.5 | 3 | YES | 75 mm | YES | R290 (CFC-free) | YES | Automatic | AISI 304 | 10–15 cm | YES | Optional | Optional | Optional | YES | 740 x 715 x 1985 | 116 | 330
FR 70 | -2 / 8 or 0 / 8 | 700 | ± 2.5 | 3 | YES | 75 mm | YES | R290 (CFC-free) | YES | Automatic | AISI 304 | 10–15 cm | YES | Optional | Optional | Optional | YES | 740 x 815 x 1985 | 126 | 330
FR 120 | -2 / 8 or 0 / 8 | 1200 | ± 2.5 | 6 | YES | 75 mm | YES | R290 (CFC-free) | YES | Automatic | AISI 304 | 10–15 cm | YES | Optional | Optional | Optional | YES | 1260 x 715 x 1985 | 186 | 650
FR 140 | -2 / 8 or 0 / 8 | 1400 | ± 2.5 | 6 | YES | 75 mm | YES | R290 (CFC-free) | YES | Automatic | AISI 304 | 10–15 cm | YES | Optional | Optional | Optional | YES | 1480 x 815 x 1985 | 196 | 650

FREEZERS (CG series)
Model | Temperature range (°C) | Capacity (L) | Temperature stability (°C) | Trays | Internal light | Insulation thickness | Ventilated refrigeration | Refrigerating gas | Automatic defrosting | Evaporation condensate | Building material | Inox adjustable feet | Reversible door | Glass door | Temperature recorder | Safety device with alarm | Key lock | Dimensions (w x d x h, mm) | Weight (Kg) | Power (W)
CG 60 | -18 / -22 | 600 | ± 3 | 3 | YES | 75 mm | YES | R290 (CFC-free) | YES | Automatic | AISI 304 | 10–15 cm | YES | Optional | Optional | Optional | YES | 740 x 715 x 1985 | 116 | 1100
CG 70 | -18 / -22 | 700 | ± 3 | 3 | YES | 75 mm | YES | R290 (CFC-free) | YES | Automatic | AISI 304 | 10–15 cm | YES | Optional | Optional | Optional | YES | 740 x 815 x 1985 | 126 | 1100
CG 120 | -18 / -22 | 1200 | ± 3 | 6 | YES | 75 mm | YES | R290 (CFC-free) | YES | Automatic | AISI 304 | 10–15 cm | YES | Optional | Optional | Optional | YES | 1260 x 715 x 1985 | 186 | 1700
CG 140 | -18 / -22 | 1400 | ± 3 | 6 | YES | 75 mm | YES | R290 (CFC-free) | YES | Automatic | AISI 304 | 10–15 cm | YES | Optional | Optional | Optional | YES | 1480 x 815 x 1985 | 196 | 1700

Characteristics / technical specifications

• Manufacturer: Astori Tecnica
• Product family: FRT / FR / T / CG series
• Construction: Internal and external AISI 304 stainless steel
• Insulation thickness: 75 mm
• Refrigerant: R290 (CFC-free)
• Temperature control: Digital, fully adjustable regulator
• Heating ventilation: Tangential laminar flow (FRT and T)
• Refrigeration: Central fan ventilated system (FRT, FR, CG)
• Internal chamber: Rounded radial corners for cleaning/sanitization
• Doors: Reversible; glass door optional
• Accessories (optional): Glass door, temperature recorder, safety alarm, internal plug, others on request
• Tray supports: Multiple heights; supplied with stainless steel grilled trays
• Feet: Stainless steel adjustable (10–15 cm)
• Security: Key lock standard; safety/alarm optional
• Temperature stability examples: Incubators ±0.2 °C; Refrigerated thermostats/refrigerators ±2.5 °C; Freezers ±3 °C (measured with regulator probe)
• Packing: Shipped in reinforced packaging to protect during transport
