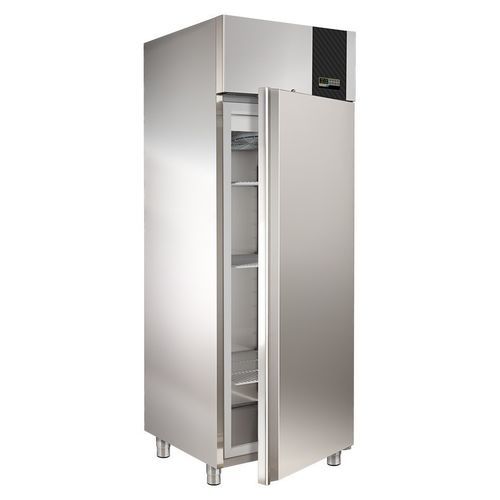

Laboratory incubator T series

forced convectionrefrigerated

Overview
A new line of laboratory instruments with an excellent temperature accuracy and uniformity level. This latest version of incubators (refrigerated or not), refrigerators and freezers includes a wide range of models to satisfy laboratory needs and delicate applications such as bacteriological analyses, shelf-life and germination studies as well as the storage of pharmaceutical products and drugs.

Technical features:

• Digital and fully adjustable thermal regulator
• Internal and external structure coated with AISI 304 stainless steel
• Heating unit with tangential laminar flow ventilation (codes FRT and T)
• Unit with a refrigeration system with central fan (codes FRT, FR and CG)
• Excellent temperature uniformity throughout the whole internal chamber
• Thick insulation
• CFC-free
• Tray supports at different heights
• Provided with stainless steel, grilled trays
• Reversible doors
• Adjustable legs in stainless steel
• Internal light
• Key lock
• Internal chamber with rounded corners, radial-based, for the best cleaning/sanification procedure
• Available optional accessories: glass door, temperature recorder, internal plug, others (upon request)
• Stability and other data: see models details below

Available models and detailed technical characteristics

REFRIGERATED THERMOSTATS (FRT)
Code no.: FRT 70 ; FRT 120 ; FRT 140
Temperature range (°C): 0 / 37 ; 0 / 37 ; 0 / 37
Capacity (liters): 700 ; 1200 ; 1400
* Temperature stability (°C): ± 2,5 ; ± 2,5 ; ± 2,5
Trays: 3 ; 6 ; 6
Internal light: YES ; YES ; YES
Insulation thickness: 75 mm ; 75 mm ; 75 mm
Ventilated refrigeration: YES ; YES ; YES
Refrigerating gas: R290 (CFC-free) ; R290 (CFC-free) ; R290 (CFC-free)
Automatic defrosting system: YES ; YES ; YES
Evaporation of the condensate: Automatic ; Automatic ; Automatic
Building material: AISI 304 ; AISI 304 ; AISI 304
Inox adjustable feet: From 10 to 15 cm ; From 10 to 15 cm ; From 10 to 15 cm
Reversible door: YES ; YES ; YES
Glass door: Optional ; Optional ; Optional
Temperature recorder: Optional ; Optional ; Optional
Safety device with alarm: Optional ; Optional ; Optional
Key lock: YES ; YES ; YES
Dimensions (w x d x h, mm): 740 x 815 x 1985 ; 1260 x 715 x 1985 ; 1480 x 815 x 1985
Weight (Kg.): 126 ; 186 ; 196
Power consumption (Watt): 1000 ; 2000 ; 2000

INCUBATORS (T)
Code no.: T 60 ; T 70 ; T 120 ; T 140
Temperature range (°C): Amb. / 60 ; Amb. / 60 ; Amb. / 60 ; Amb. / 60
Capacity (liters): 600 ; 700 ; 1200 ; 1400
* Temperature stability (°C): ± 0,2 ; ± 0,2 ; ± 0,2 ; ± 0,2
Trays: 3 ; 3 ; 6 ; 6
Internal light: YES ; YES ; YES ; YES
Insulation thickness: 75 mm ; 75 mm ; 75 mm ; 75 mm
Building material: AISI 304 (all models)
Inox adjustable feet: From 10 to 15 cm (all models)
Reversible door: YES (all models)
Glass door: Optional (all models)
Temperature recorder: Optional (all models)
Safety device with alarm: Optional (all models)
Key lock: YES (all models)
Dimensions (w x d x h, mm): 740 x 715 x 1985 ; 740 x 815 x 1985 ; 1260 x 715 x 1985 ; 1480 x 815 x 1985
Weight (Kg.): 116 ; 126 ; 186 ; 196
Power consumption (Watt): 1000 ; 1000 ; 2000 ; 2000

REFRIGERATORS (FR)
Code no.: FR 60 ; FR 70 ; FR 120 ; FR 140
Temperature range (°C): -2 / 8 or 0 / 8 (each model) ; -2 / 8 or 0 / 8 ; -2 / 8 or 0 / 8 ; -2 / 8 or 0 / 8
Capacity (liters): 600 ; 700 ; 1200 ; 1400
* Temperature stability (°C): ± 2,5 ; ± 2,5 ; ± 2,5 ; ± 2,5
Trays: 3 ; 3 ; 6 ; 6
Internal light: YES ; YES ; YES ; YES
Insulation thickness: 75 mm ; 75 mm ; 75 mm ; 75 mm
Ventilated refrigeration: YES (all models)
Refrigerating gas: R290 (CFC-free) (all models)
Automatic defrosting system: YES (all models)
Evaporation of the condensate: Automatic (all models)
Building material: AISI 304 (all models)
Inox adjustable feet: From 10 to 15 cm (all models)
Reversible door: YES (all models)
Glass door: Optional (all models)
Temperature recorder: Optional (all models)
Safety device with alarm: Optional (all models)
Key lock: YES (all models)
Dimensions (w x d x h, mm): 740 x 715 x 1985 ; 740 x 815 x 1985 ; 1260 x 715 x 1985 ; 1480 x 815 x 1985
Weight (Kg.): 116 ; 126 ; 186 ; 196
Power consumption (Watt): 330 ; 330 ; 650 ; 650

FREEZERS (CG)
Code no.: CG 60 ; CG 70 ; CG 120 ; CG 140
Temperature range (°C): -18 / -22 (all models)
Capacity (liters): 600 ; 700 ; 1200 ; 1400
* Temperature stability (°C): ± 3 ; ± 3 ; ± 3 ; ± 3
Trays: 3 ; 3 ; 6 ; 6
Internal light: YES (all models)
Insulation thickness: 75 mm (all models)
Ventilated refrigeration: YES (all models)
Refrigerating gas: R290 (CFC-free) (all models)
Automatic defrosting system: YES (all models)
Evaporation of the condensate: Automatic (all models)
Building material: AISI 304 (all models)
Inox adjustable feet: From 10 to 15 cm (all models)
Reversible door: YES (all models)
Glass door: Optional (all models)
Temperature recorder: Optional (all models)
Safety device with alarm: Optional (all models)
Key lock: YES (all models)
Dimensions (w x d x h, mm): 740 x 715 x 1985 ; 740 x 815 x 1985 ; 1260 x 715 x 1985 ; 1480 x 815 x 1985
Weight (Kg.): 116 ; 126 ; 186 ; 196
Power consumption (Watt): 1100 ; 1100 ; 1700 ; 1700

Caractéristiques / spécifications techniques

• Digital fully adjustable thermal regulator (probe-measured temperature variation indicated in tables)
• Construction: internal and external AISI 304 stainless steel
• Heating ventilation: tangential laminar flow (FRT, T)
• Refrigeration: central fan with R290 refrigerant (CFC-free) (FRT, FR, CG)
• Insulation thickness: 75 mm
• Temperature ranges by category: Incubators Amb./60°C ; Refrigerated thermostats 0/37°C ; Refrigerators -2/8 or 0/8°C ; Freezers -18/-22°C
• Temperature stability examples: incubators ±0.2°C ; refrigerated thermostats & refrigerators ±2.5°C ; freezers ±3°C
• Tray supports at multiple heights; stainless steel grilled trays supplied
• Reversible doors; optional glass door
• Adjustable inox feet (10–15 cm)
• Internal rounded corners for easy cleaning; internal light; key lock
• Automatic defrost and automatic condensate evaporation (refrigerated models)
• Optional accessories: temperature recorder, internal plug, safety alarm device and others upon request
• Models available in multiple widths/capacities (600–1400 L) with corresponding weights and power consumptions as detailed above
