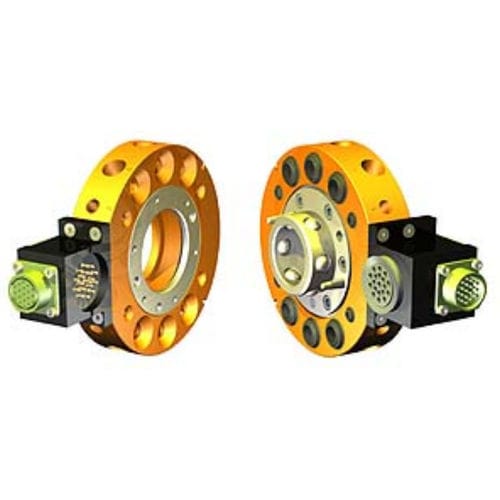

Robotic tool changer QC-41

automatic

-Large 3/8 NPT ports. -No-Touch locking technology allows up to 0.12 inch (3.0 mm) plate separation when locking. -Patented Fail-Safe locking mechanism design results in low force acting on the piston. -Large piston diameter and outward ball travel increase moment capacity. -All locking parts made of Rc58 stainless steel. -Long-life bushings for pneumatic pass-through. Suggested Payload Limit: - 110 lb Locking Force @ 80 psi (5.5 bar): - 1000 lb Static Moment Capacity (X & Y): - 1390 lbf-in Static Moment Capacity (Z): - 1910 lbf-in Positional Repeatability - (X, Y, & Z): - 0.0006 in Weight - when coupled: - 4.7 lb Master Weight: - 3 lb Tool Weight: - 1.7 lb Maximum distance between Master & Tool plate before locking at 87 psi (6 bar): - 0.12 in Pneumatic Pass-through Ports (qty) Size: - (6) 3/8 NPT; (4) 1/8 NPT
