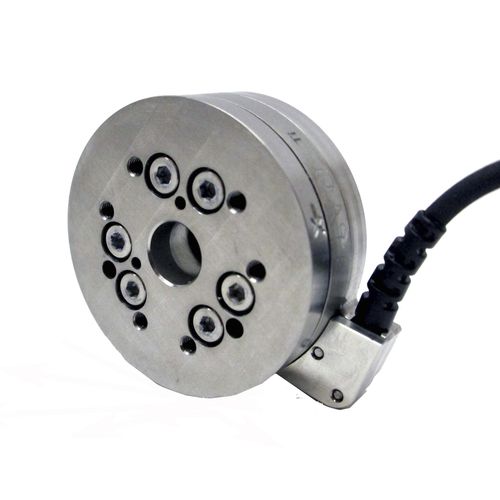

Force and torque sensor Mini45 Titanium

force and torque sensor
force and torque sensor
Add to favorites
Compare this product


Description

-Non-Ferrous Materials: Titanium construction. -Very-Fine Resolution: Can resolve down to 1.7 gram-force. -Extremely-High Strength: EDM wire-cut from grade 5 titanium. Maximum allowable single-axis overload values are 5.5 to 23.6 times rated capacities. -High Signal-to-Noise Ratio: Silicon strain gages provide a signal 75 times stronger than conventional foil gages. This signal is amplified, resulting in near-zero noise distortion. Typical Applications -Biomechanical research -Measurements in highly magnetic environments -Medical applications Single-Axis Overload Fxy - ±3000 N Fz - ±6400 N Txy - ±67 Nm Tz - ±81 Nm Stiffness (Calculated) X-axis & Y-axis forces (Kx, Ky) - 4.3x107 N/m Z-axis force (Kz) - 5.7x107 N/m X-axis & Y-axis torque (Ktx, Kty) - 9.7x103 Nm/rad Z-axis torque (Ktz) - 2.0x104 Nm/rad Resonant Frequency Fx, Fy, Tz - 5800 Hz Fz, Tx, Ty - 4600 Hz Physical Specifications Weight* - 0.0998 kg Diameter* - 45 mm Height* - 17.5 mm
