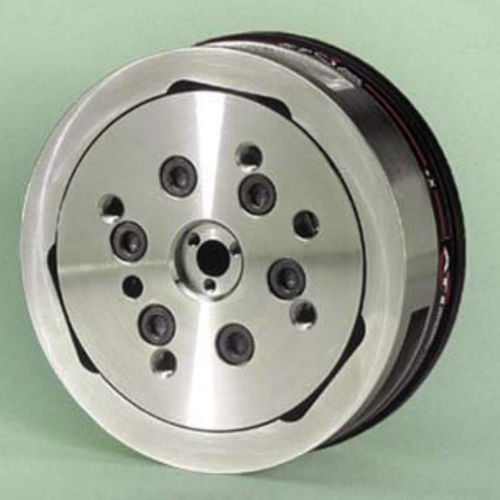

6-axis force and torque sensor Deltaanalog0-10 VRS-485
Add to favorites
Compare this product
Characteristics
- Type
- 6-axis
- Output
- analog, 0-10 V, CAN, EtherCAT P, Ethernet, ProfiNet, RS-422, RS-485
- Applications
- for robots
- Rated force
600 N
- Torque
60 Nm
(44.25 ft.lb)
Description
Product overview
Key specifications (summary)
Technical characteristics & applications
- 6-axis force/torque sensing platform measuring forces and torques in Fx, Fy, Fz, Tx, Ty, Tz. Nominal payload 660 N / 60 Nm with axis-specific ranges for applications requiring balanced force and torque measurement.
- Industrial form factor with integrated electronics for straightforward mechanical and electrical integration into test rigs, robots and automation cells.
- Analog output (±10 V) for real-time feedback compatible with PLCs, motion controllers and common DAQ systems; other digital/network interfaces available as variants.
- High mechanical strength: EDM wire‑cut from high yield‑strength stainless steel. Single‑axis maximum allowable overloads range between ~4.1× and ~18.8× rated capacities depending on axis.
- High signal‑to‑noise: silicon strain gauges and onboard amplification provide low‑noise, high‑fidelity measurements.
- Default environmental rating IP20 for controlled industrial or laboratory environments; IP65 and IP68 variants available for harsher conditions.
Key specifications (summary)
- Measurement range: 660 N / 60 Nm
- Sensing range (X/Y Force): ±660 N
- Sensing range (X/Y Torque): ±60 Nm
- Sensing range (Z Force): ±1980 N
- Sensing range (Z Torque): ±60 Nm
- Resolution (X/Y Force): 0.03125 N
- Resolution (X/Y Torque): 0.002 Nm
- Resolution (Z Force): 0.0625 N
- Resolution (Z Torque): 0.002 Nm
- Single‑axis overloads: Force X/Y ±3700 N; Force Z ±10000 N; Torque X/Y ±280 Nm; Torque Z ±400 Nm
- Calculated stiffness: Force X/Y 3.6×10^7 N/m; Force Z 5.9×10^7 N/m; Torque X/Y 5.2×10^4 Nm/rad; Torque Z 9.1×10^4 Nm/rad
- Resonant frequency: Fx/Fy/Tz 1500 Hz; Fz/Tx/Ty 1700 Hz
- Physical: Height 33.3 mm; Diameter 94.5 mm; Weight 0.913 kg
- Interface (default): Analog (±10 V); Connector: 20‑pin Hirose
- Environmental rating (default): IP20 (IP65 / IP68 variants available)
- Accuracy: 0.75–1.25% of full scale (axis dependent)
- Latency: <1 ms; Sample rate: 40 kHz (effective per‑axis rate depends on DAQ channel allocation)
Technical characteristics & applications
- Product family / model: Delta Force/Torque Sensor (multiple interface and IP‑rated variants available)
- Connectivity options (variants): EtherCAT, RS485, Ethernet/RS422, EtherNet/IP/CAN, PROFINET besides analog ±10 V
- Material & construction: high yield‑strength stainless steel, precision EDM manufacturing for repeatable performance
- Designed for: robotic assembly and automation, real‑time force control, haptic feedback systems, rehabilitation and biomechanics research, industrial test benches
- Typical part numbers (examples): 9105‑TIF‑DELTA; 9105‑TIF‑DELTA‑IP65; 9105‑TIF‑DELTA‑IP68; 9105‑ECAT3‑DELTA; 9105‑NETRS‑DELTA
- Notes for integrators: select IP and interface variant according to environment and controller compatibility; ensure DAQ channel allocation for full six‑axis sampling at required effective rates.
