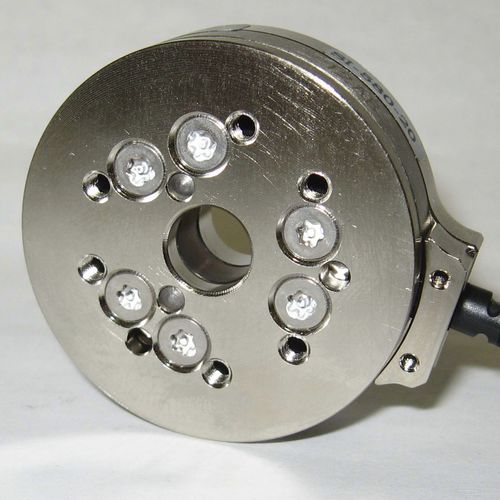

6-axis force and torque sensor Mini45analog0-10 Vvoltage output
Add to favorites
Compare this product
Characteristics
- Type
- 6-axis
- Output
- analog, 0-10 V, voltage output, CAN, EtherCAT P, Ethernet, ProfiNet, RS-422, RS-485
- Applications
- for robots
- Rated force
580 N
- Torque
20 Nm
(14.75 ft.lb)
Description
Product Overview
Model / Part Number
Model Number: Mini45-AE-1.8-IFPS
Part Number: Mini45-AE-1.8-IFPS
Available Variants / Typical Options
Specifications (key values)
Technical Features
- 6-Axis Force/Torque Sensing – Measures force and torque in all six degrees of freedom (Fx, Fy, Fz, Tx, Ty, Tz) with ranges up to 580 N force and 20 Nm torque, suitable for testing and robotic automation.
- Form Factor – Compact, low-profile design with high capacity, external electronics, and a through-hole to allow passage of linkages or cables.
- Analog Output (+/-10V) – Provides simple, real-time force and torque feedback compatible with most PLCs, controllers, and data acquisition systems.
- Extremely-High Strength – EDM wire-cut from high yield-strength stainless steel. Maximum allowable overload values range from about 5.7 to 25.3 times rated capacities depending on axis.
- High Signal-to-Noise Ratio – Silicon strain gages provide a signal substantially stronger than conventional foil gages; amplified for near-zero noise distortion.
- IP20 Rated for Controlled Environments – Basic protection against solid objects; ideal for clean, dry, enclosed industrial or laboratory use (select variants/options may have different ratings).
Model / Part Number
Model Number: Mini45-AE-1.8-IFPS
Part Number: Mini45-AE-1.8-IFPS
Available Variants / Typical Options
- Communication interface options: Analog (+/-10V), Analog (mV/V), EtherCAT & RS485 (Box), Ethernet & RS422 (Box), EtherNet/IP & CAN, PROFINET, plus various board/box/interface modules.
- Cable length and exit options: 1.8m Axial, 5m Axial, 1.8m Radial, 5m Radial, 1.8m Tangential, 5m Tangential.
- Connector options: 12-pin round Amphenol (common) and 8-pin Molex PicoBlade on some variants.
- Interface plate rating: IP20 (standard); select variants available with IP68 rating.
Specifications (key values)
- Measurement Range – 580 N / 20 Nm
- Sensing Range - X/Y Force – ±580 N
- Sensing Range - X/Y Torque – ±20 Nm
- Sensing Range - Z Force – ±1160 N
- Sensing Range - Z Torque – ±20 Nm
- Resolution - X/Y Force – 0.25 N
- Resolution - X/Y Torque – 0.005 Nm
- Resolution - Z Force – 0.25 N
- Resolution - Z Torque – 0.003 Nm
- Force X/Y Single Axis Overload – ±5100 N
- Force Z Single Axis Overload – ±10000 N
- Torque X/Y Single Axis Overload – ±110 Nm
- Torque Z Single Axis Overload – ±140 Nm
- Force X/Y Calculated Stiffness – 7.4×10^7 N/m
- Torque X/Y Calculated Stiffness – 1.7×10^4 Nm/rad
- Force Z Calculated Stiffness – 9.8×10^7 N/m
- Torque Z Calculated Stiffness – 3.5×10^4 Nm/rad
- Resonant Frequency (Fx/Fy/Tz) – 5600 Hz
- Resonant Frequency (Fz/Tx/Ty) – 5400 Hz
- Height – 15.7 mm
- Weight – 0.0917 kg
- Diameter – 45 mm
- Interface Plate Rating (standard) – IP20
- Communication Interface (example) – Analog (+/-10V)
- Accuracy (% Full Scale) – 0.75 – 1.25%
- Latency – <1 ms
- Sample Rate – 40 kHz
- Connector (example) – 12-pin round Amphenol
Technical Features
- 6-axis measurement: Fx, Fy, Fz, Tx, Ty, Tz
- Primary measurement range example: 580 N / 20 Nm (variant SI-580-20)
- Z-axis force range up to ±1160 N (for the 580 N class)
- High sample rate: 40 kHz (sensor sample rate depends on DAQ device channel allocation)
- Very low latency: <1 ms
- Compact form factor: 45 mm diameter, 15.7 mm height
- Multiple communication interfaces and connector/cable exit options available
- Accuracy typically between 0.75% and 1.25% full scale (axis-dependent)
